XBee S2 2mW Zigbee Wireless Data Transmission Module 120 Meters For

XBee S2 2mW Zigbee Wireless Data Transmission Module 120 Meters For

US$ 26.16

Availability: In stock

SKU:

Notice:Dear friend, if your order more than $5, Aliexpress don't allow we send by not available tracking information shipping method (like China Post Ordinary Small Packet Plus, 4PX Singapore Post...

Add to wishlist

Notice:Dear friend, if your order more than $5, Aliexpress don't allow we send by not available tracking information shipping method (like China Post Ordinary Small Packet Plus, 4PX Singapore Post OM Pro). So please choose China Post Air Mail if your order more than $5. Or pls split your order, you can submit more than 2 orders, make sure your each order less than $5. If you can't accept, pls don't buy, We refuse to delivery. Thank you for your support, enjoy your shopping.

Please notice:If you choose China Post Ordinary Small Packet Plus,the tracking information will only shows in the order page and do not have a tracking number.If you want monitor the whole transit process,please choose other shipping method like China Post Registered Air Mail.

We won't accept dispute if youchosen China Post Ordinary Small Packet Plus and ask a tracking number

Xbee module is a ZigBee wireless module technology, such as through inter serial devices to communicate with the microcontroller , can very quickly achieve the purpose of the device is connected to a ZigBee network.

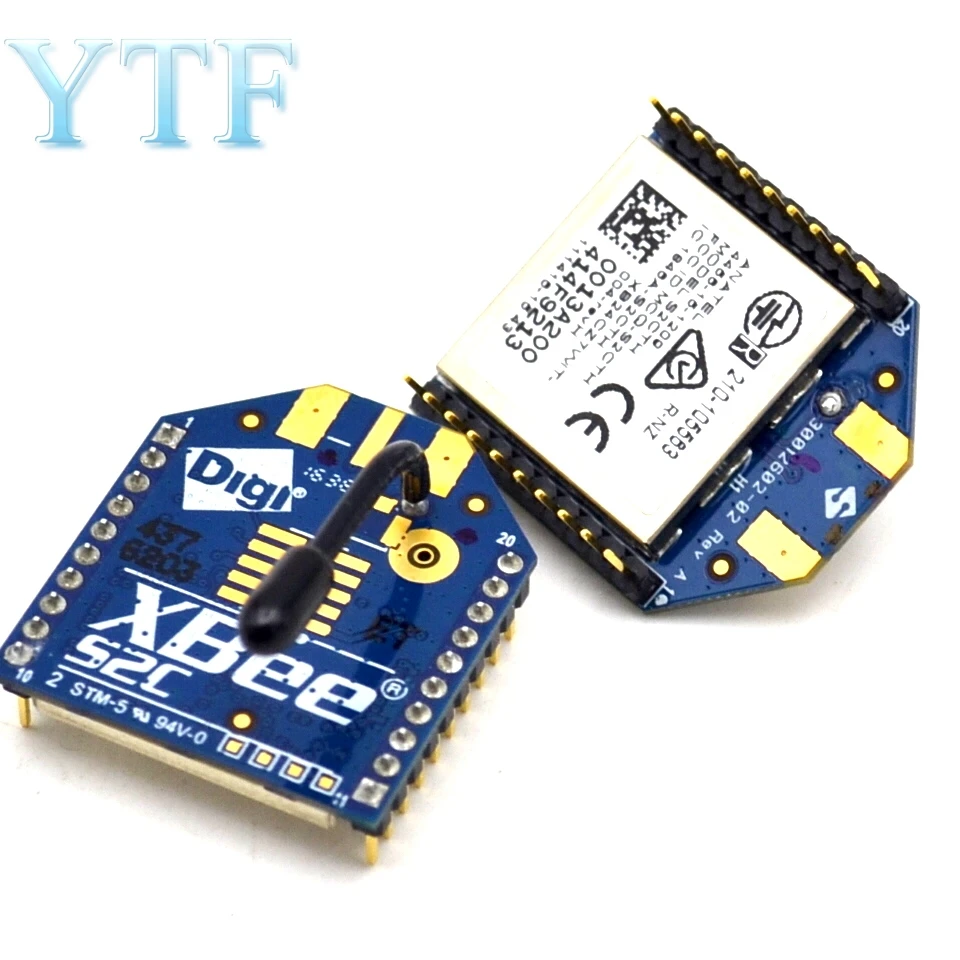

This is a new Digi produced 2.4Ghz Xbee XB24-Z7WIT-004 wireless transmission module. Improved versions of the output power and transport protocols. S2 series and basic models have the same pin definitions , but stronger output power -2mW. Its maximum transmission distance up to 1200 meters ( outdoor open distance ) and transfer rates of up to 250kbps . This module provides a highly reliable data transfer , any serial output devices can use the module for data transfer, support point - point and multi-point network transmission .

This is the XBee XB24-Z7WIT-004 module from Digi. Series 2 improves on the power output and data protocol. Series 2 modules allow you to create complex mesh networks based on the XBee ZB ZigBee mesh firmware. These modules allow a very reliable and simple communication between microcontrollers, computers, systems, really anything with a serial port! Point to point and multi-point networks are supported.

These are essentially the same hardware as the older Series 2.5, but have updated firmware. They will work with Series 2.5 modules if you update the firmware through X-CTU.

Not sure which XBee module or accessory is right for you? Check out our XBee Buying Guide!

Note: If you are looking for a simple point-to-point configuration, you might want to try the Series 1 instead The Series 2 requires considerable setup and configuration We highly recommendBuilding Wireless Sensor Networks as a guide for setting up mesh networks...

Note:. Series 1 and Series 2 XBee modules have the same pin-out However, Series 1 modules can not communicate with Series 2 modules.

Note: If you are using these outside of the United States, please check with your local laws regarding radio communication.

Features:

3.3V @ 40mA

250kbps Max data rate

2mW output (+ 3dBm)

400ft (120m) range

Built-in antenna

Fully FCC certified

6 10-bit ADC input pins

8 digital IO pins

128-bit encryption
