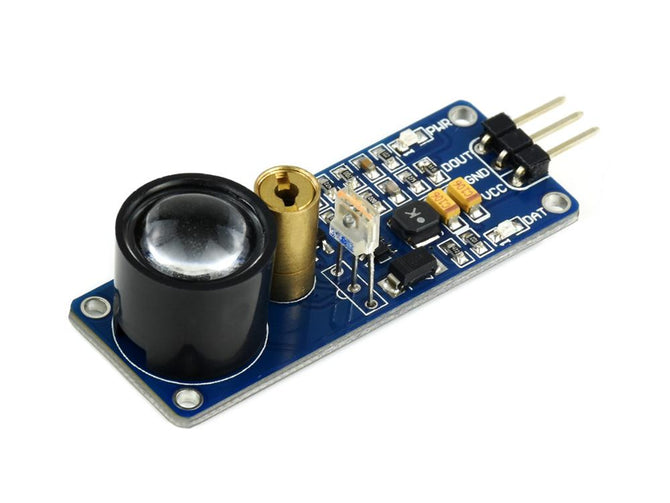

Waveshare Laser Sensor Detector Module compatible with Arduino STM32 Obstacle detection Smart car Module

Overview

• Features boost circuit
• Signal output indicator

Specifications

• Effective distance: 0.8m(typ), 1.5m(max)
• Power: 2.5V ~ 5.0V
• Dimension: 47.7mm * 17.9mm
• Mounting holes size: 2.0mm

Applications

• Obstacle detection
• Pipeline counter
• Smart robot
• Obstacle-avoiding car

How to Use

In the case of working with a MCU:

• VCC ↔ 2.5V ~ 5.0V
• GND ↔ power supply ground
• DOUT ↔ MCU.IO (digital output)

Downloads

Development resources: demo codes, schematic, datasheets, etc.
Wiki: www.waveshare.com/wiki/Laser_Sensor

PACKAGE CONTENT

​Weight: 0.01 kg

1. Laser Sensor x1
2. 3-pin custom connector jumper wire x1
