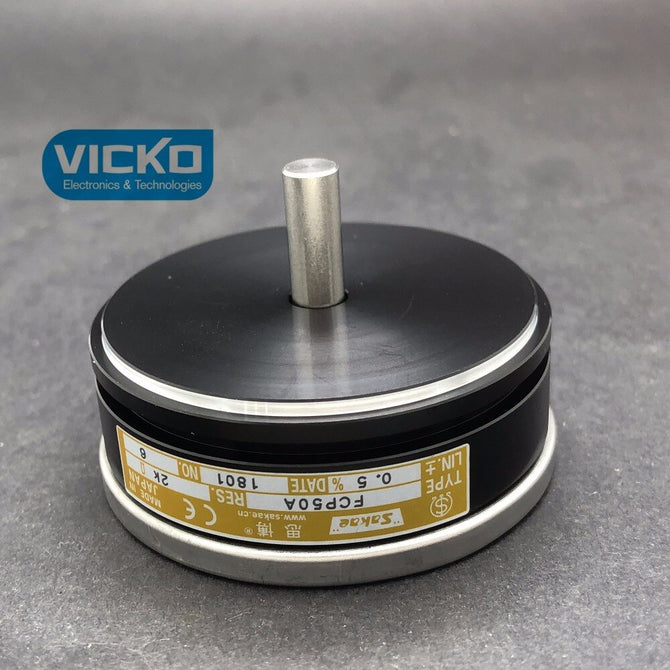

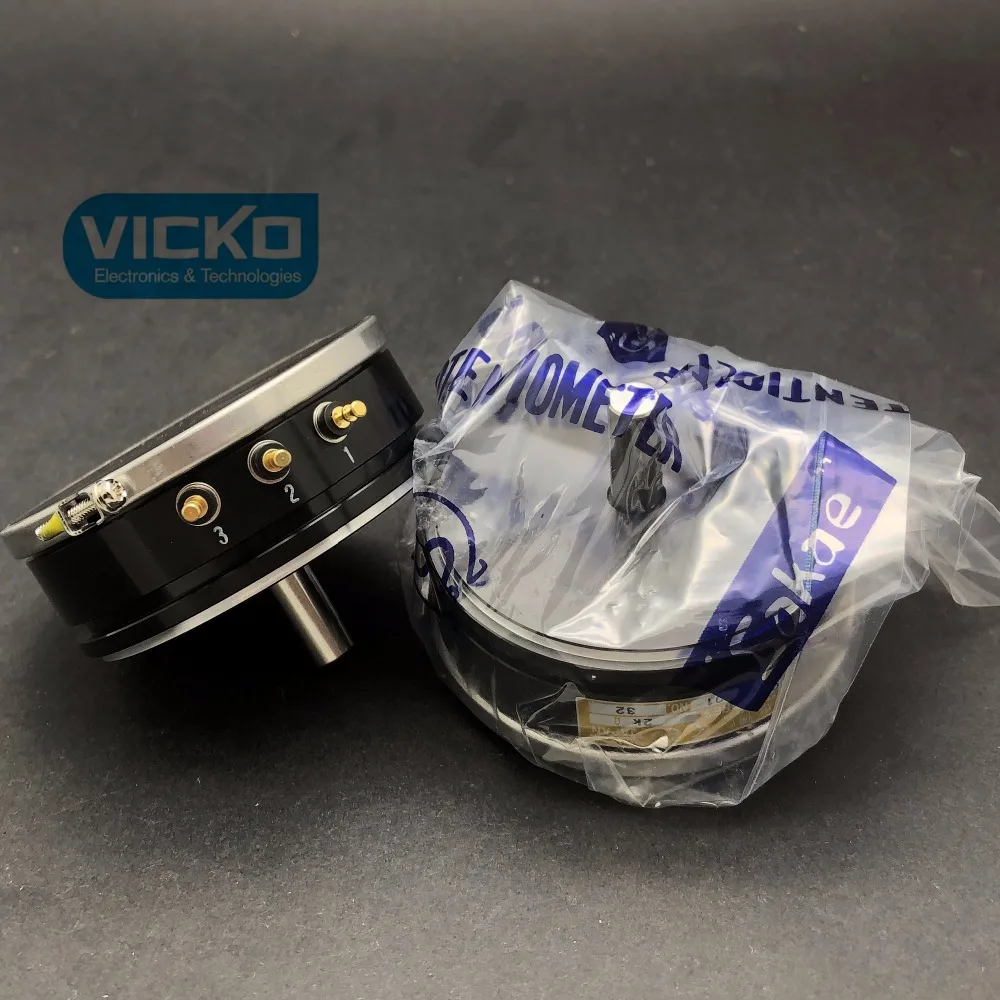

[VK] ORIGINAL JAPAN Sakae FCP50A 3W 1K 2K 5K 10K conductive plastic potentiometer SWITCH

[VK] ORIGINAL JAPAN Sakae FCP50A 3W 1K 2K 5K 10K conductive plastic potentiometer SWITCH

US$ 176.37

: In stock

: 32835642071

    Resistance: 1K,2K,5K,10K; Total resistance tolerance: ± 10%; Independent linear tolerance: ± 0.5%; Resolution: infinitesimal; Output smooth: < input voltage 0.1%; Variation of contact resistance: <2%C.R.V. Power: 3 w....
color
1k
2k
5k
10k
Add to wishlist
Share:


Resistance: 1K,2K,5K,10K;
Total resistance tolerance: ± 10%;
Independent linear tolerance: ± 0.5%;
Resolution: infinitesimal;
Output smooth: < input voltage 0.1%;
Variation of contact resistance: <2%C.R.V.
Power: 3 w.
Electrical stroke: 350 ° ± 5 °;
Mechanical travel: 360 ° rotation (continuous);
Insulation resistance: > 1000 m Ω (1000 v, dc);
Temperature coefficient of resistance: ±400P.P.M./℃;
