USB 2.0 USB 2.0 to RS485 RS-485 RS422 RS-422 DB9 COM Serial Port Device Converter Adapter Cable, Prolific PL2303, Free Shipping

USB 2.0 to RS-485/RS-422 DB9 Serial Adapter Cable

Manage More Serial Devices Easily and Efficiently!

• Allows to connect RS-485/RS-422 device to your computer via USB port.

• Stable and reliable Prolific PL2303.

• Real USB 2.0 specification compliant for faster and steadier data communication.

• TIA/EIA RS-485/RS-422 standard compliant.

• Data transfer rate up to 10Mb/s.

• Transmit distance reach up to 1219m. (The longer distance, the lower rate.)

• Supports multiple terminals up to 32 RS-485 & 10 RS-422 devices.

• Supports automatic handshake mode.

• Supports remote wake up and power management.

• Auto sense serial signal rate. Zero delay automatic transmit.

• 600W surge and 15KV static electricity protection.

• Standard USB type A male and RS-485/RS-422 serial 9 pin male connector with terminal board.

• Total length: 80mm.

• Ideal connections to Modem, PDA, GPS, Bar Code, Digitizer, Digital Camera, Label printer & ISDN terminal adapter, etc.

• Supports Windows 2000/XP/Vista/7/8/Server 2003/2008, RedHat 7.3/8.0/9.0, Kernel 2.4.10 or above & Mac OS 8 or above.

• Note: The USB side must be connected to PC or Mac. Other USB devices like digital camera, scanner and printer is not allowed.

Package Content:

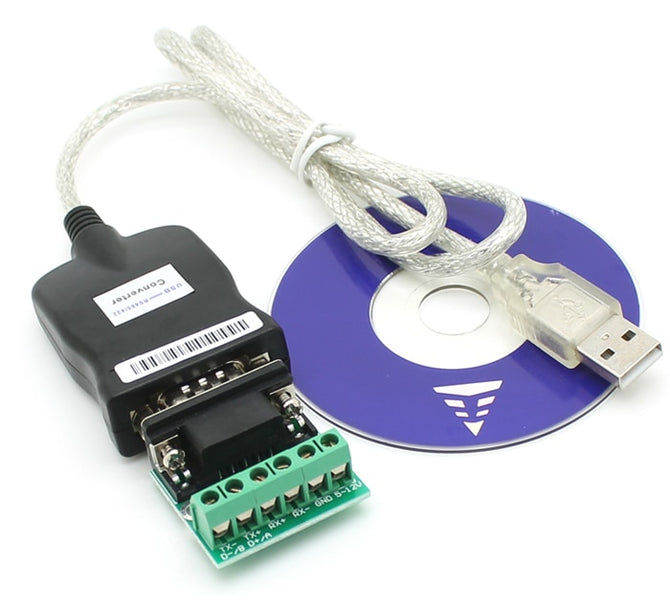

1X USB 2.0 to RS-485/RS-422 Adapter Cable

1X 6 pin Terminal Board

1X Driver CD
