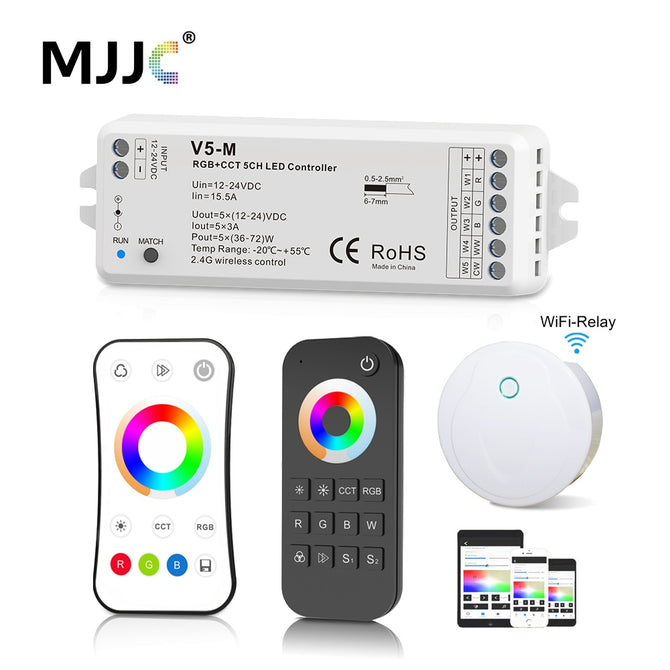

RGBCCT LED Controller 12V 24V DC PWM 5CH RF Wireless Remote Control Smart Wifi Controller for 5050 2835 RGBWW LED Strip Light
MJJC-V5-M
5 Channel RGB+CCT LED RF Controller
Features:

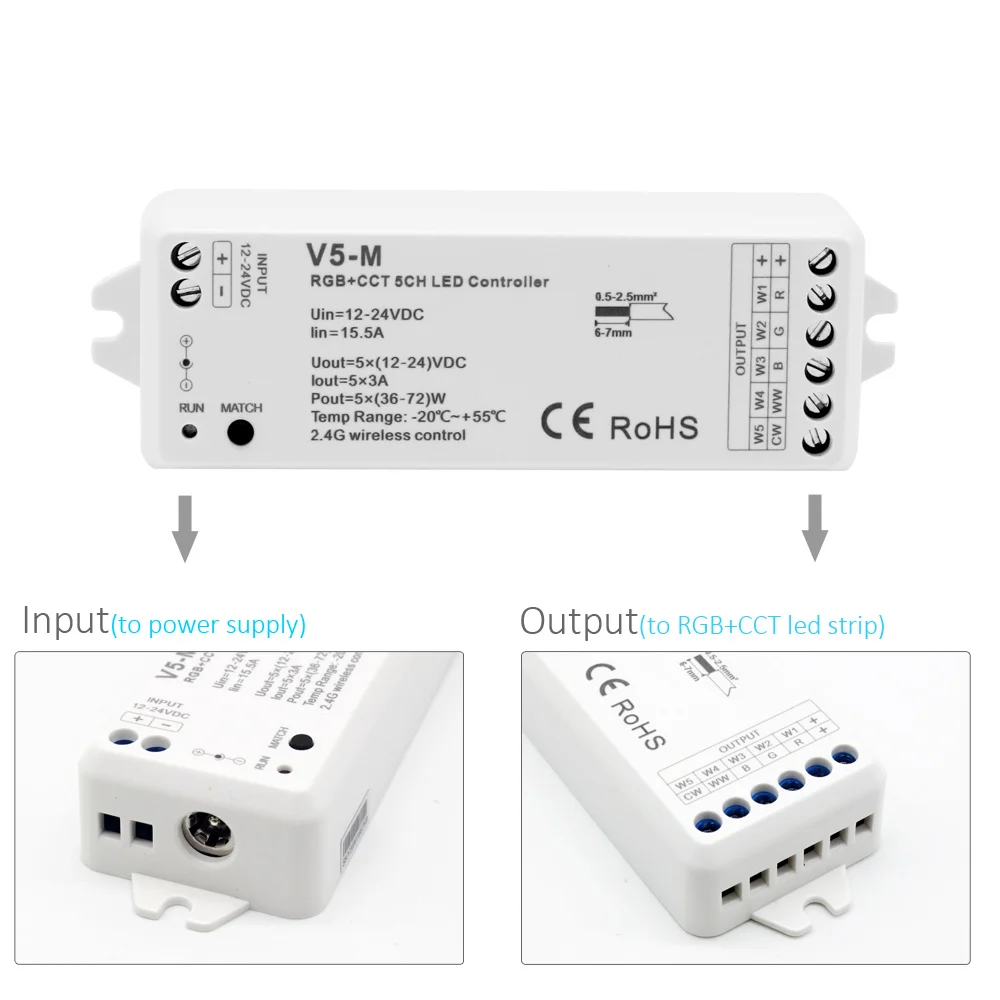

● Mini style LED controller with DC power socket input and 5 channel constant voltage output.
● Full compatibility with a variety of RGB+CCT remote.
● Smooth dimming and switch without any flickering.
● Built in 10 RGB change mode, include jump or gradual change style, adjustable speed.
● Adopt 2.4GHz wireless technology, remote distance up to 30m, can accept up to 10 remote control.
● Auto-transmitting function, one receiver can transmit the signal from the remote to another receiver within 15m, so the remote control distance can be beyond 100m.
● Auto-synchronization function, different receivers can work synchronously when they are controlled by the same remote, under same dynamic mode and same speed.
● Can be WiFi controlled by APP installed on IOS or Android mobile devices while working with WiFi-Relay controller.
● User can customize own RGB change mode list by APP for advanced function.
● Work with power repeater to expand output unlimitedly.
(Receiver) Specifications:
● Input voltage: 12 24VDC
● Output type: PWM constant voltage
● Output current: 5CH, 3A/CH, Total max 15A
● Output power: 180-360W
● Grey levels: 4096/CH
● Dimming range: 0-100%
● Remote distance: 30m
● Working temperature: -30℃~55℃

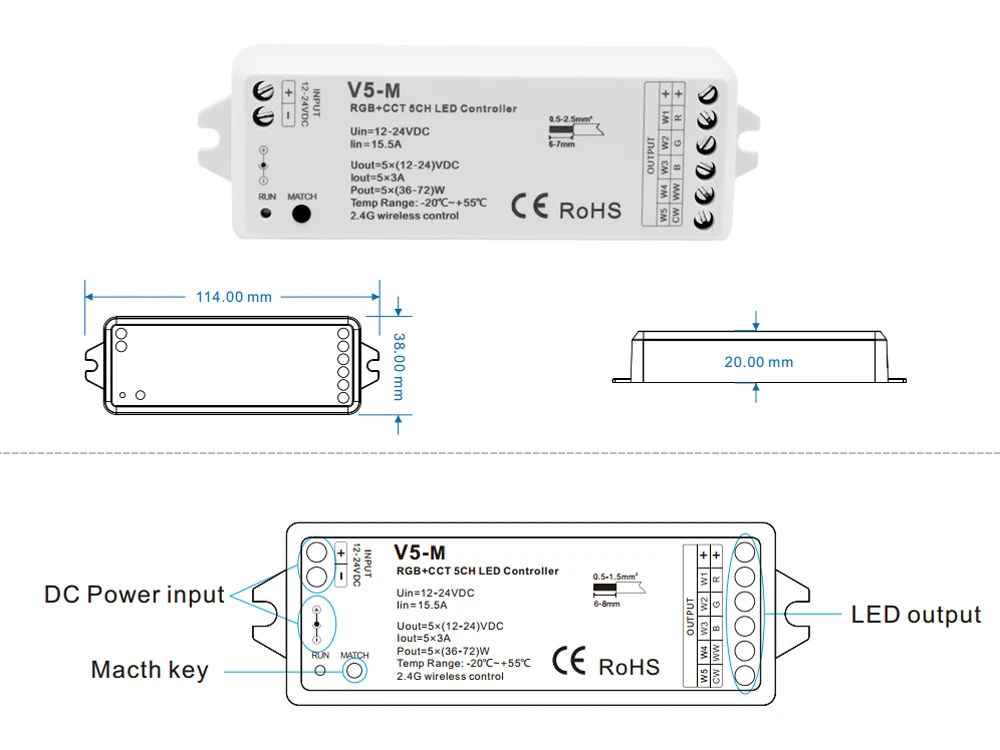

● Product size: L114×W38×H20mm
● Net weight: 53g
Match guide MJJC-V5-M receiver match with all kinds of single or multiple zone RGB+CCT remote controller.
Choose 1:Use Match key
1. Match: Short press match key, within 5s, press on/off key or zone key of the remote.
2. Delete: Long press match key for 5s, delete all matched remote.
3. Multiple zone remote only use zone key to match each zone receiver.
Choose 2:Use Power-up
1. Match: Switch off the power, then switch on power again,short press on/off key or zone key 3 times on the remote quickly within 5s after power on,the link is done once the light blinks 3 times.
2. Delete: Switch off the power, then switch on power again,short press on/off key or zone key 5 times on the remote quickly within 5s after power on,the unlink is done once the light blinks 5 times.
3. Multiple zone remote only use zone key to match each zone receiver.

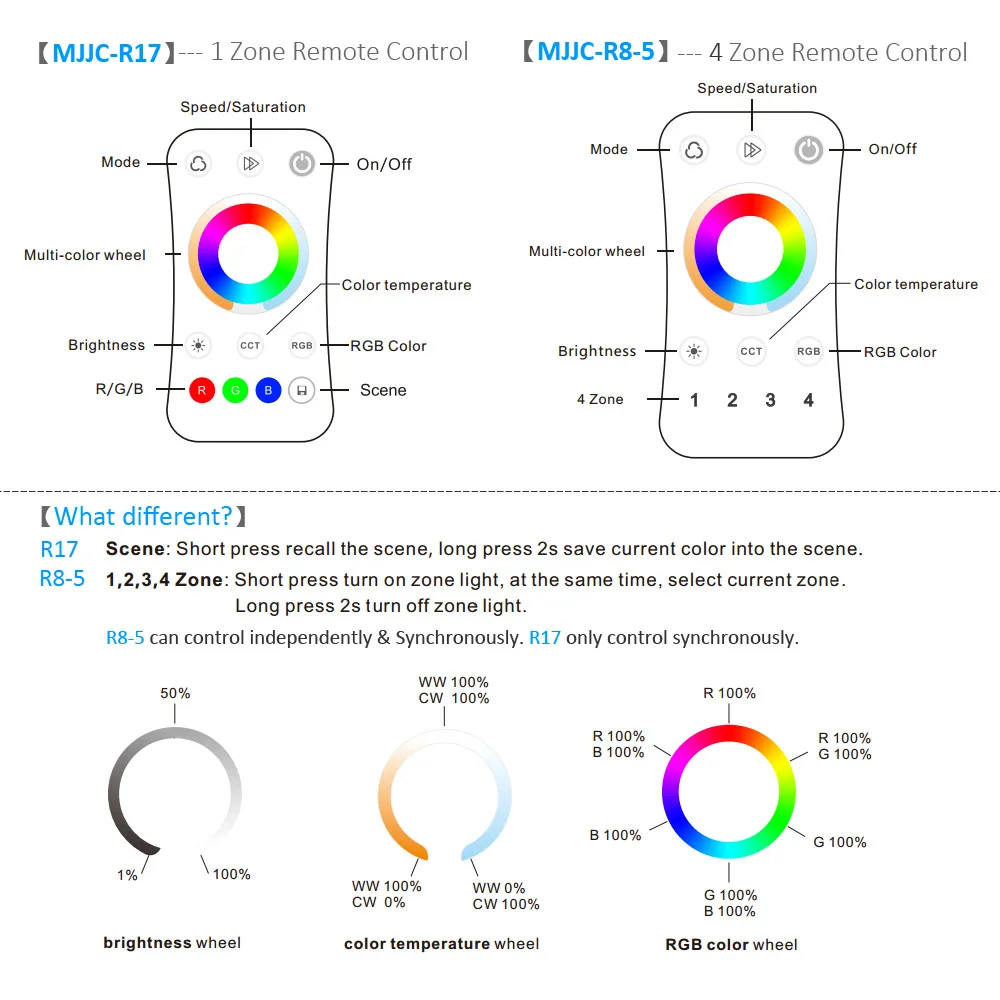

(Sender/Remote Control)Specifications & Functions:

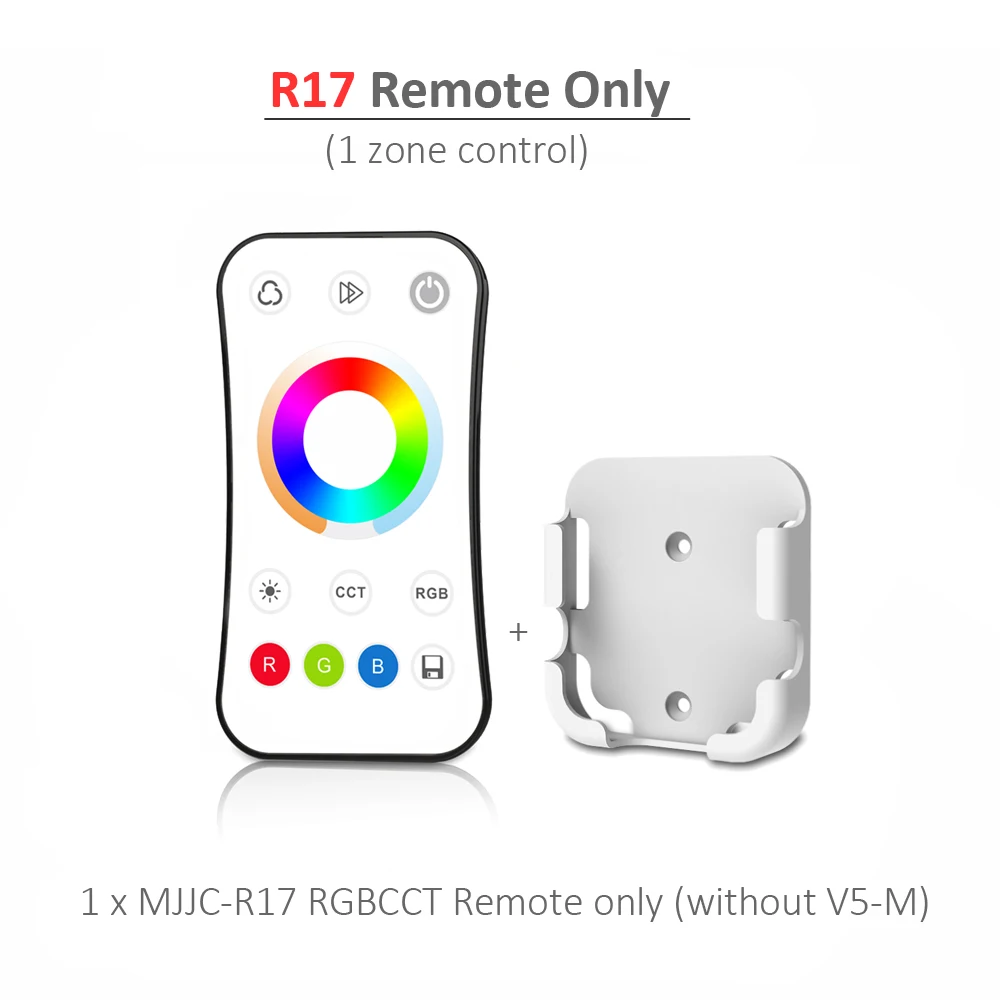

MJJC-R17 remote(1 zone remote control)

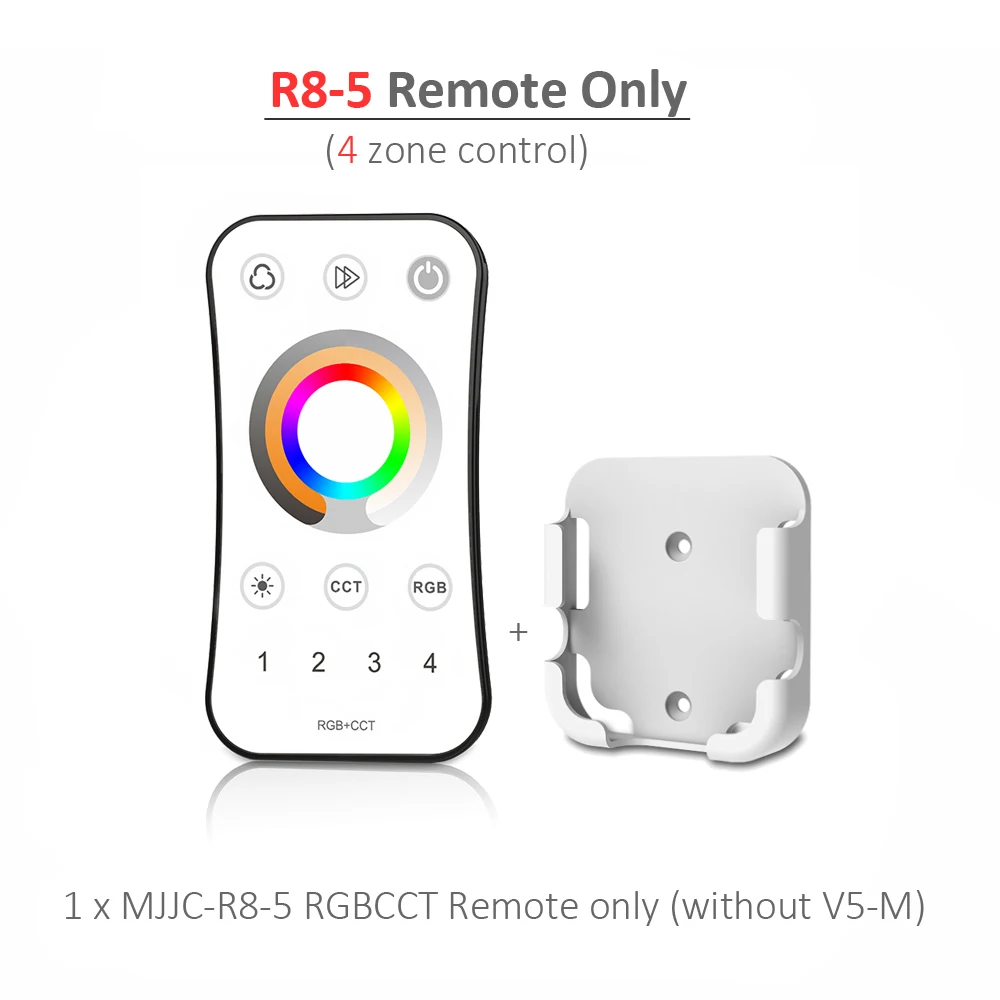

MJJC-R8-5 remote(4 zone remote control)
● Output signal: RF(2.4GHz)
● Working voltage : 3VDC(CR2032)
● Working current: ＜5mA
● Standby current: ＜10μA
● Standby time: 1 year
● Remote distance: 30m
● Working temperature: -30℃~55℃
● Dimension: L107×W58.5×H9mm
● Weight: 34g

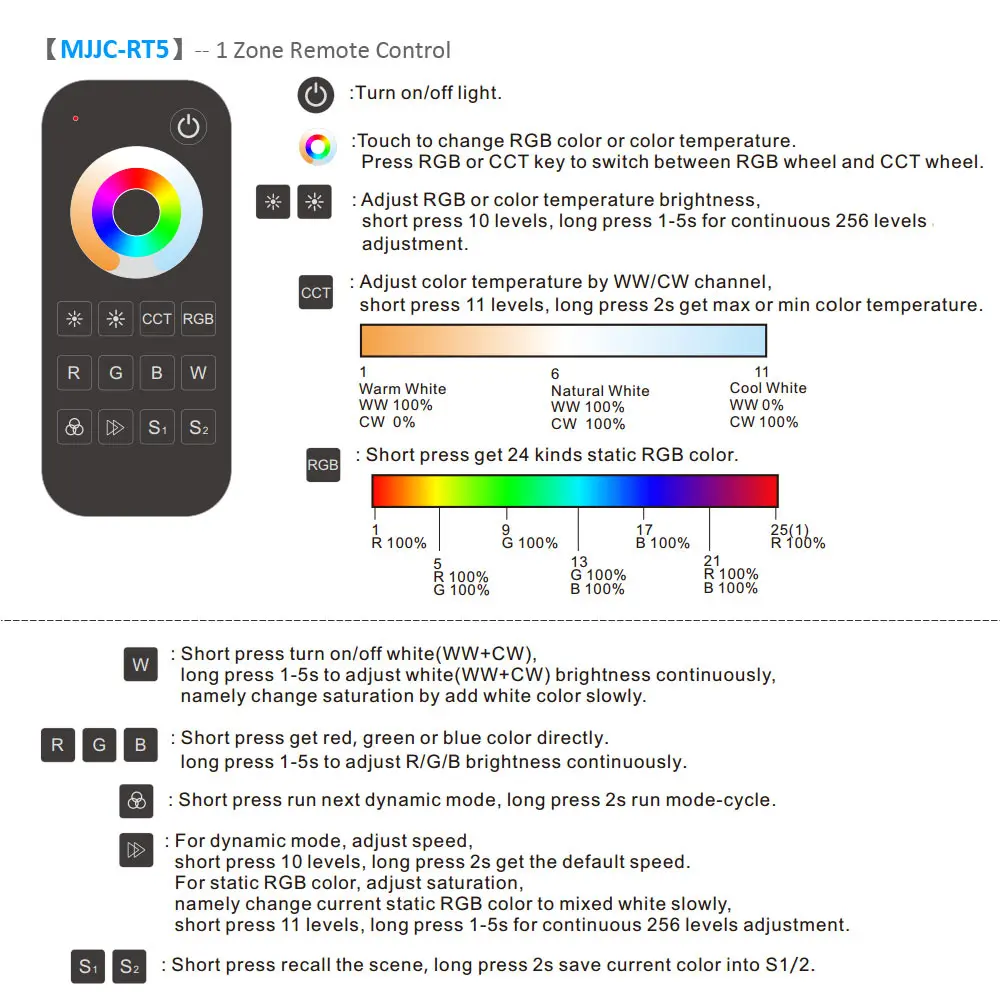

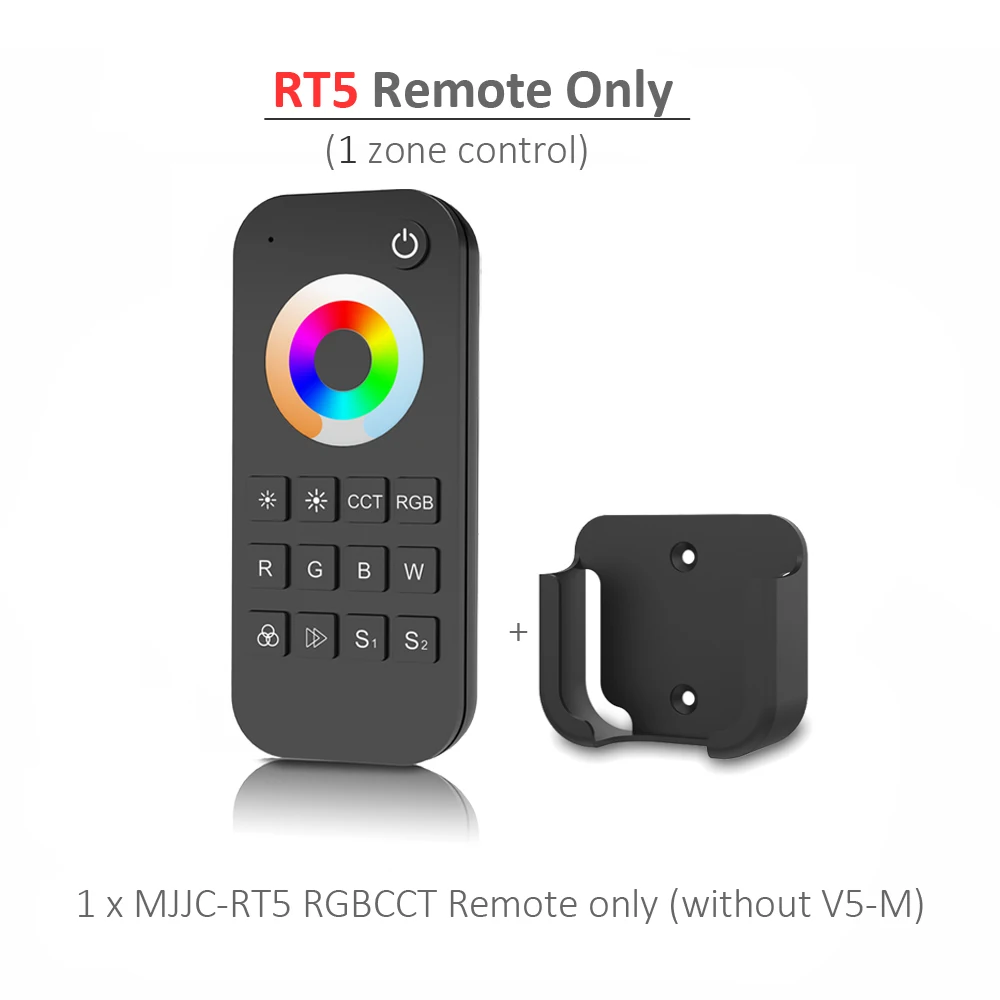

MJJC-RT5 remote(1 zone remote control)
● Output signal: RF(2.4GHz)
● Working voltage: 3VDC(AAA*2pcs)
● Working current: ＜20mA
● Standby current: ＜10μA
● Standby time: 12 months
● Remote distance: 30m
● Working temperature: -30℃~55℃
● Dimension: L122×W53×H17.5mm
● Weight: 60g

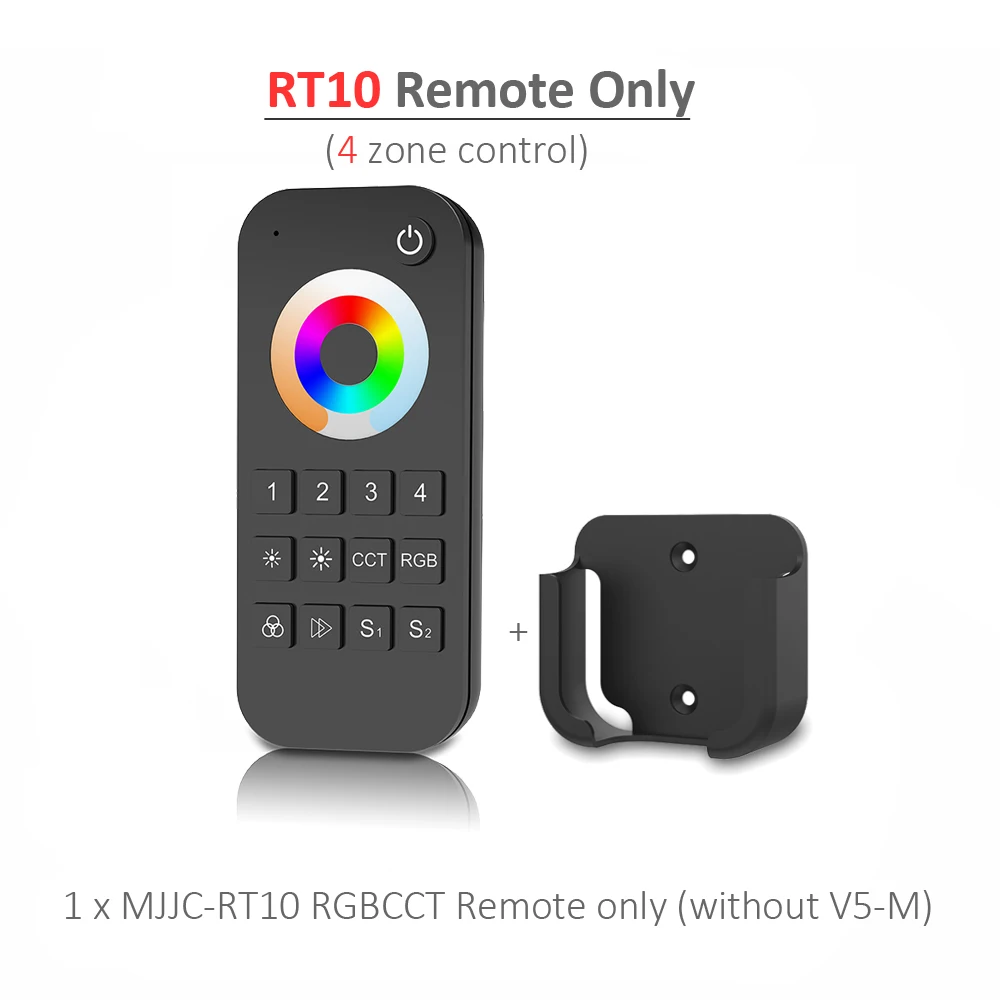

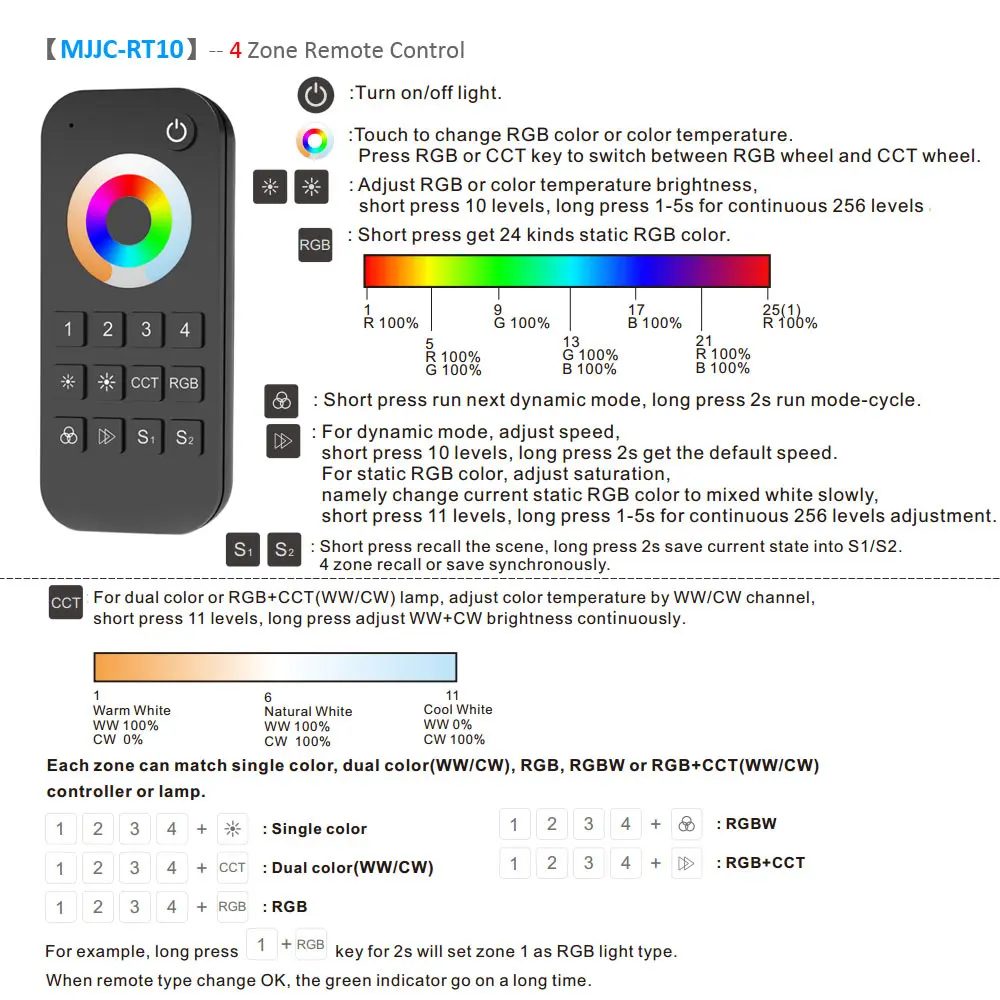

MJJC-RT10 remote(4 zone remote control)
● Output signal: RF(2.4GHz)
● Working voltage: 3VDC(AAA*2pcs)
● Working current: ＜5mA
● Standby current: ＜10μA
● Standby time: 2 years
● Remote distance: 30m
● Working temperature: -30℃~55℃
● Dimension: L122×W53×H17.5mm
● Weight: 60g

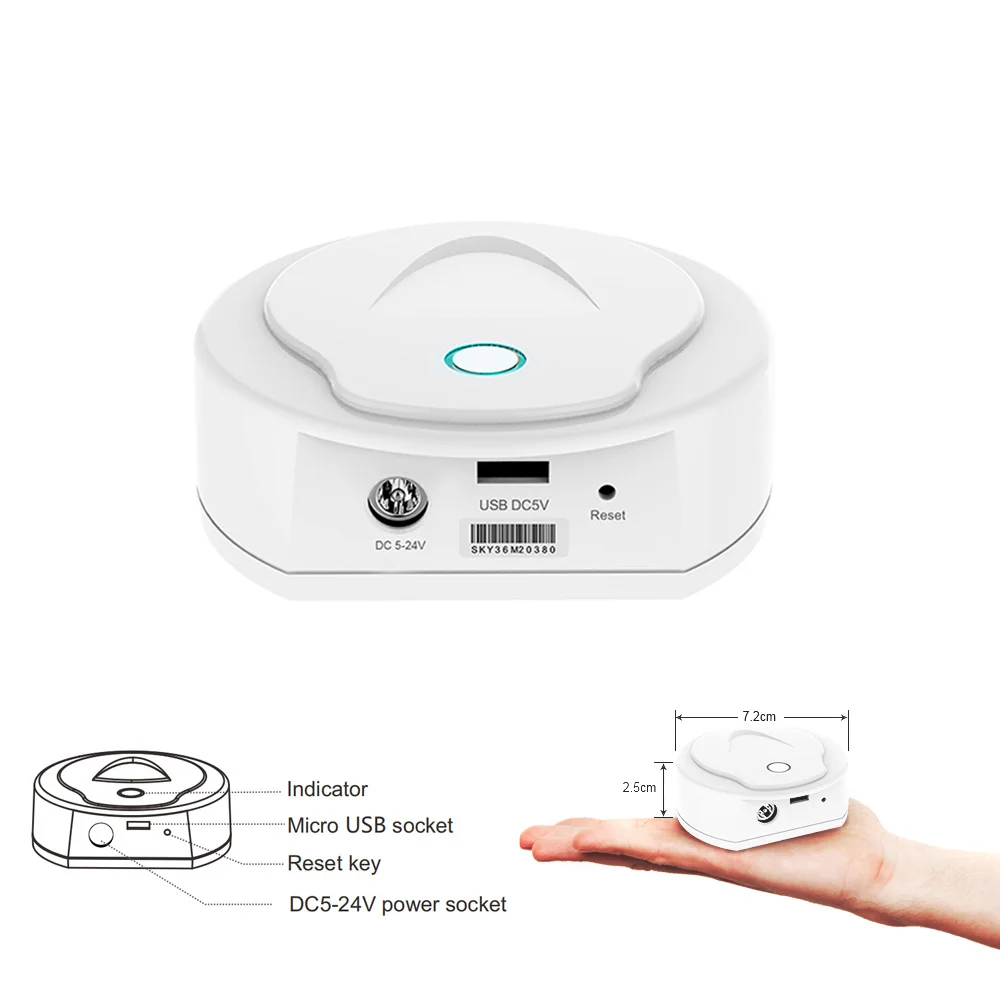

The WiFi-Relay controller converts WiFi signal to RF signal, also know as WiFi gateway or Wifi hub. it is compatible with multiple type of Skydance receivers. With WiFi-relay, you could control single color, dual color, RGB, RGBW, RGB+CCT LED lights by smart phone.
Note: This product can not be used alone,This wifi to RF converter need work with V1, V2, V3, V4, V5-M, VP, KS, S1-B,S1-K etc wireless receivers
Features
● Can mix load all Skydance RF 2.4G LED controllers, LED dimmable driver and smart lamp.
● Can realize dimming, color temperature, RGB, RGBW, RGB+CCT light effects.
● Load 1-16 zones, 8 scene memory.
● Including one micro USB cable.
● Android / IOS software name: SkySmart.
Technical Parameters:
● Input voltage : DC5-24V Input voltage
● Operation frequency: 2.4G
● Remote distance: 30m
● Working temperature: -30℃~55℃
● Product size : Φ72×25mm

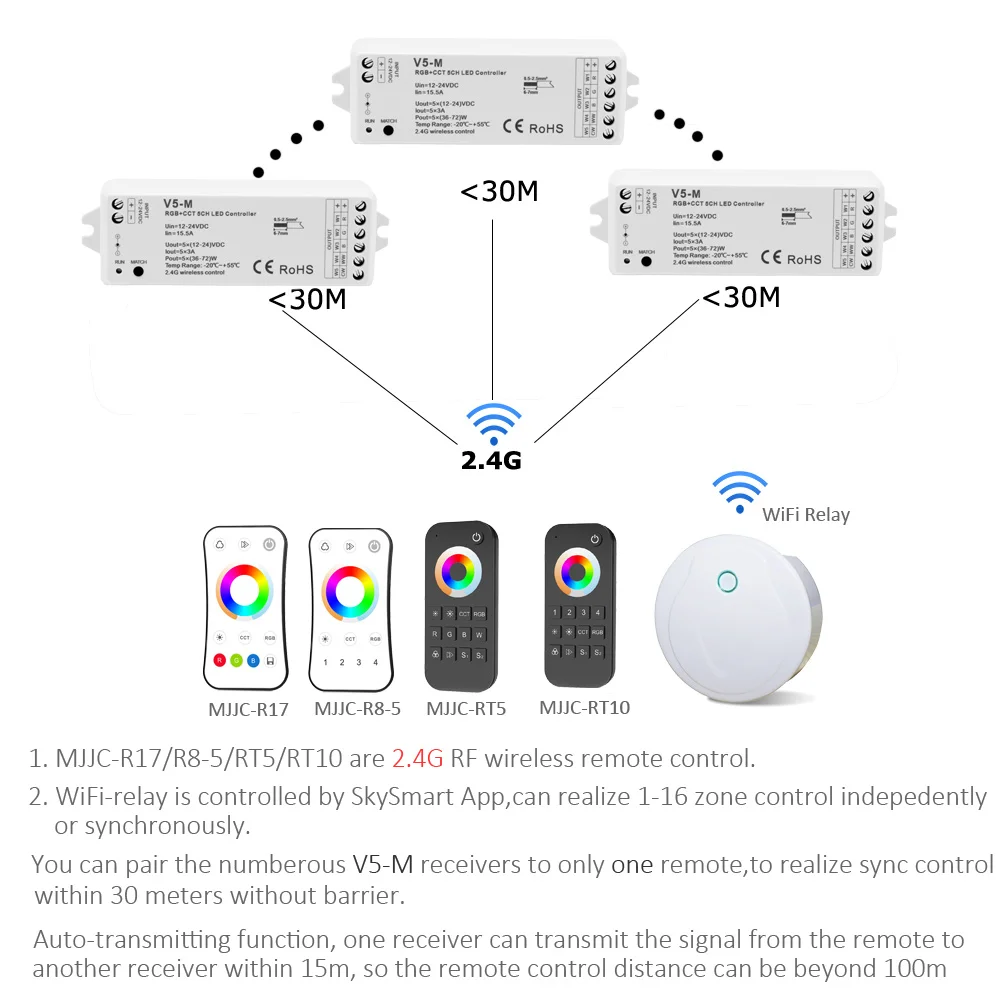

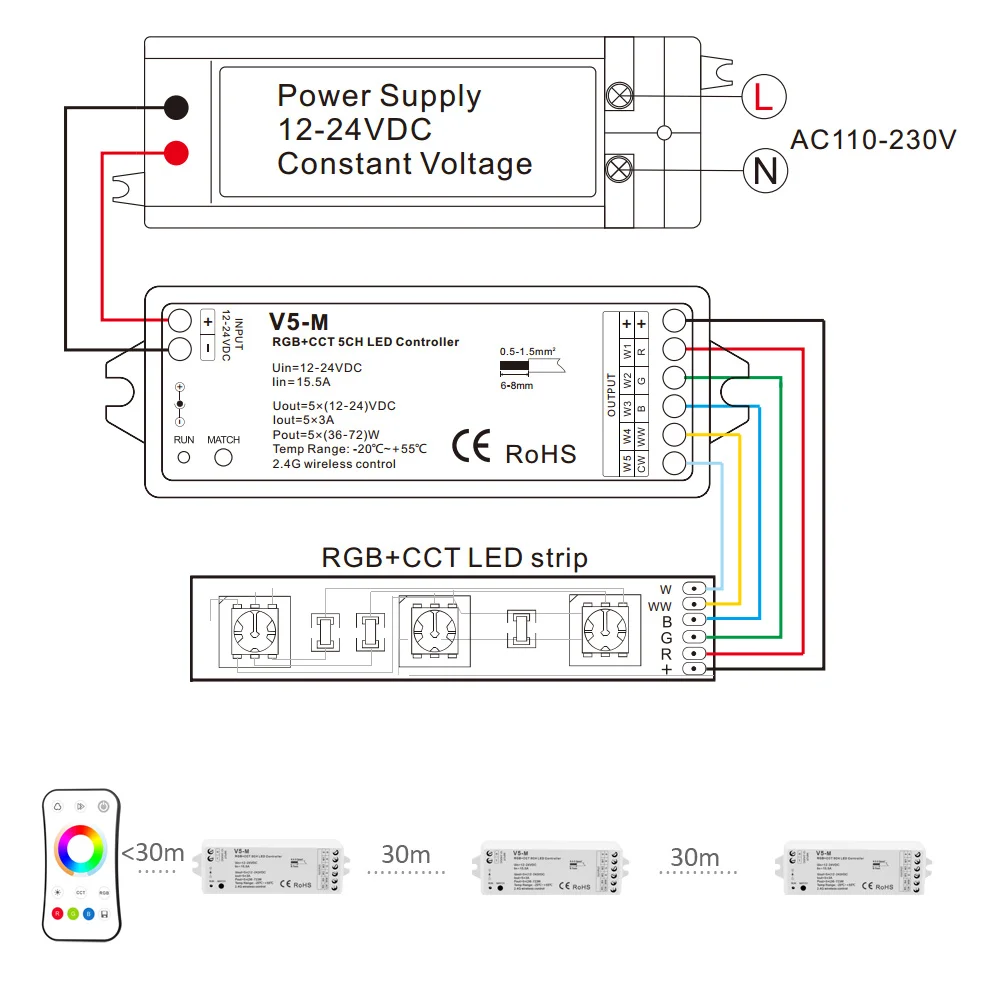

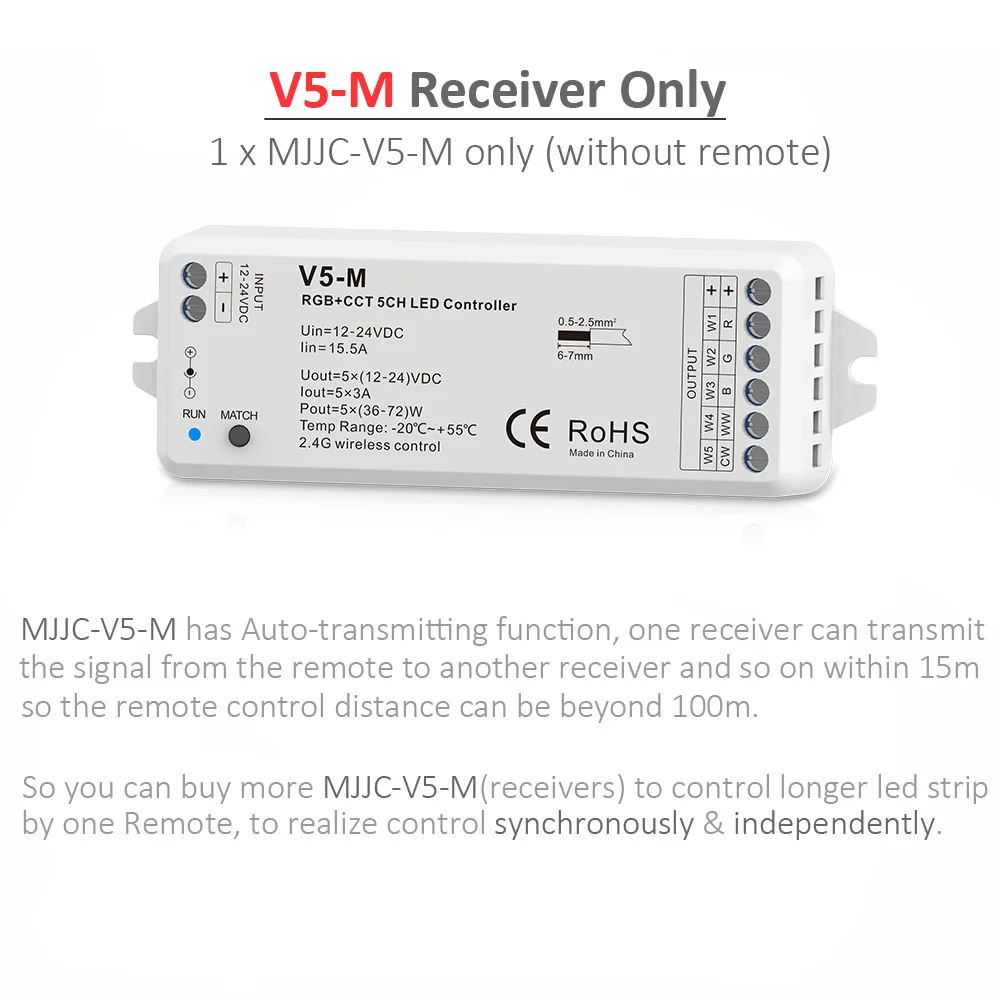

MJJC-V5-M has Auto-transmitting function, one receiver can transmit, the signal from the remote to another receiver and so on within 15m,so the remote control distance can be beyond 100m.
So you can buy more MJJC-V5-M(receivers) to control longer led strip,by one Remote, to realize control synchronously & independently.
