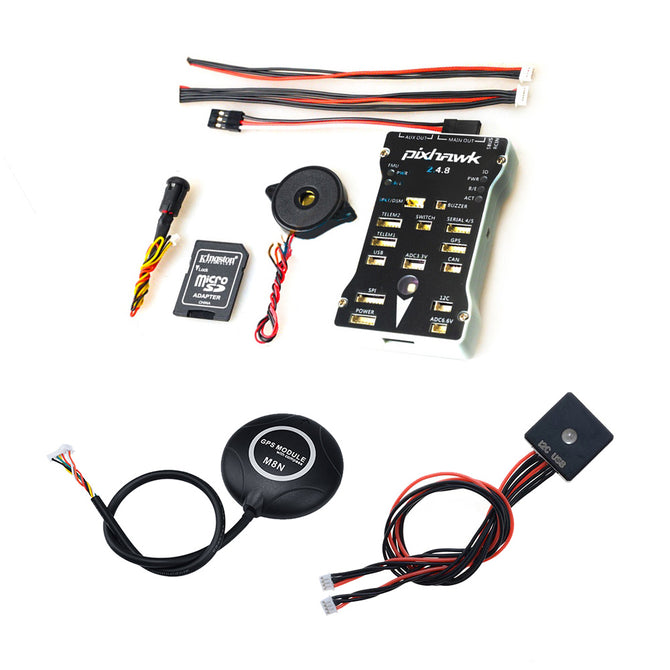

Pixhawk PX4 Autopilot PIX 2.4.8 32 Bit Flight Controller with Safety Switch and Buzzer / 16GB Card / M8N GPS / LED Module
US$ 68.53
US$ 75.06
: In stock
: 592767
Description: The board integrates with PX4FMU+PX4IOPixhawk is with new 32 bit chip and sensor technologyFeatures:Advanced 32 bit CortexM4 ARM high performance processor, can run RTOS NuttX real time operating system;14* PWM/...
Share:
Description:
The board integrates with PX4FMU+PX4IO
Pixhawk is with new 32 bit chip and sensor technology
Features:
Advanced 32 bit CortexM4 ARM high performance processor, can run RTOS NuttX real time operating system;
14* PWM/ actuator output;
Bus interface (UART, I2C, SPI, CAN);
Integrated backup power supply and failure backup controller, the main controller can be safely switched to backup control;
Provide automatic and manual mode;
Provide redundant power input and fault transfer function;
Color LED lamp;
Multi tone buzzer interface;
Micro SD to record flight data;
Processor:
32 bit 2M flash memory STM32F427 Cortex M4, with hardware floating point processing unit
Main frequency: 256K, 168MHZ RAM
32 bit STM32F103 backup co processor
Sensor:
L3GD20 3 axis digital 16 bit gyroscope
LSM303D 3 axis 14 bit accelerometer /magnetometer
MPU6000 6 axis accelerometer / magnetometer
MS5611 high precision barometer
Interface:
5* UART, 1*compatible high voltage, 2*hardware flow control
2* CAN
DSM/DSM2/DSM-X satellite receiver compatible input
Futaba SBUS compatible input and output
PPM signal input
RSSI (PWM or voltage) input
I2C
SPI
3.3 and 6.6VADC input
External USB MICRO interface
The board integrates with PX4FMU+PX4IO
Pixhawk is with new 32 bit chip and sensor technology
Features:
Advanced 32 bit CortexM4 ARM high performance processor, can run RTOS NuttX real time operating system;
14* PWM/ actuator output;
Bus interface (UART, I2C, SPI, CAN);
Integrated backup power supply and failure backup controller, the main controller can be safely switched to backup control;
Provide automatic and manual mode;
Provide redundant power input and fault transfer function;
Color LED lamp;
Multi tone buzzer interface;
Micro SD to record flight data;
Processor:
32 bit 2M flash memory STM32F427 Cortex M4, with hardware floating point processing unit
Main frequency: 256K, 168MHZ RAM
32 bit STM32F103 backup co processor
Sensor:
L3GD20 3 axis digital 16 bit gyroscope
LSM303D 3 axis 14 bit accelerometer /magnetometer
MPU6000 6 axis accelerometer / magnetometer
MS5611 high precision barometer
Interface:
5* UART, 1*compatible high voltage, 2*hardware flow control
2* CAN
DSM/DSM2/DSM-X satellite receiver compatible input
Futaba SBUS compatible input and output
PPM signal input
RSSI (PWM or voltage) input
I2C
SPI
3.3 and 6.6VADC input
External USB MICRO interface
| Color | black |
| Model | Pixhawk PX4 |
| Material | Composite Material |
| Quantity | 1 set |
| Compatible Model | DIY RC Drone Multirotor |
| Packing List | 1 x 2.4.8 Pixhawk main control 1 x Flight control shell 1 x Safety switch 1 x Buzzer 1 x 6pin to 6pin line 1 x 4Pin to 4Pin line 1 x 3pin DuPont line 1 x 1G SD Card 1XM8N GPS 1XPX4 LED module |
Dimensions: 3.19 in x 1.97 in x 1.77 in (8.1 cm x 5.0 cm x 4.5 cm)
Weight: 3.17 oz (90 g)
Weight: 3.17 oz (90 g)
