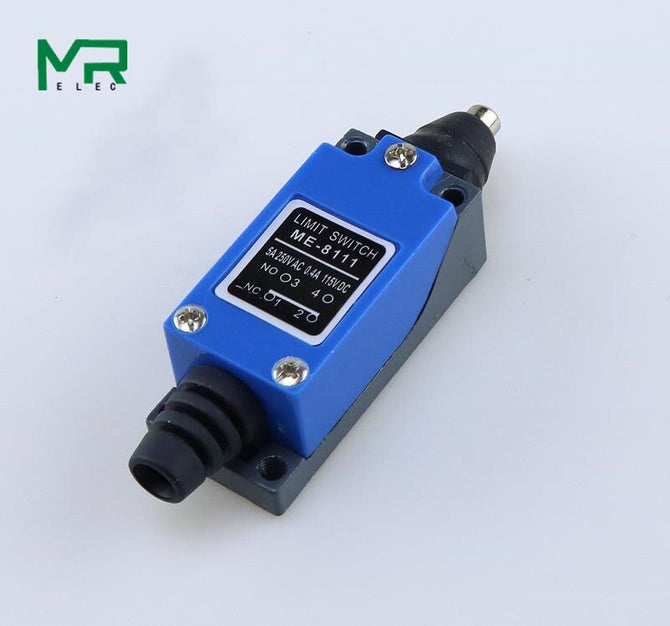

ME-8108 8104 8107 8169 8166 8111 9101 limit switch Rotary Adjustable Roller Lever Arm Mini Limit Switch series

1.Description:

Limit switch ,compact design,long mechanicatical life.

Easy wiring with full open terminals.

High precision, high reliability

Dust proof ,water proof ,oil proof construction (IP64)

Double circuit type.

5A load current

Strong body with combination of reinforced plastic and aluminium Die Casting compaonents.

Build in basic switch with doule spring mechanism.

2.Characteristics:

Operation speed 0.5mm-50cm/sec

Operating frequency Mechanical: 120 operations/minute, Electrical: 30 operations/minute

Contact resistance 25mΩ max. (initial value)

Insulation resistance 100mΩ min. (at 500VDC)

Dielectric strength 1000VAC, 50/60HZ for 1 minute between terminals of the same polarity

1500VAC, 50/60 HZ for 1 minute between currentcarrying

and non-current-carrying metal parts

1500VAC, 50/60 HZ for 1 minute between each terminal and ground

Vibration 10-55HZ,1.5mm double amplitude

Shock

Mechanical durable: 1, 000m/Sec2 (about 100GS)

Malfunction: 300m/Sec2 (about 30GS)

Ambient temperature -5°C to +65°C

Humidity <95% RH

Life

Mechanical: 10,000,000 operations above

Electrical: 500,000 operations above

Weight About 130 to 190g

Degree of protection IP65
