MCP2515 Can Bus Shield Board SPI Interface 9 Pins Standard Sub-D Connector Expansion Module DC 5-12V For Arduino Seeeduino
US$ 6.24
: In stock
: 32868999780
Introduction: CAN-BUS is a common industrial bus because of its long travel distance, medium communication speed and high reliability. It is commonly found on...
Share:
Introduction:
CAN-BUS is a common industrial bus because of its long travel distance,
medium communication speed and high reliability.
It is commonly found on modern machine tools and as an automotive diagnostic bus.

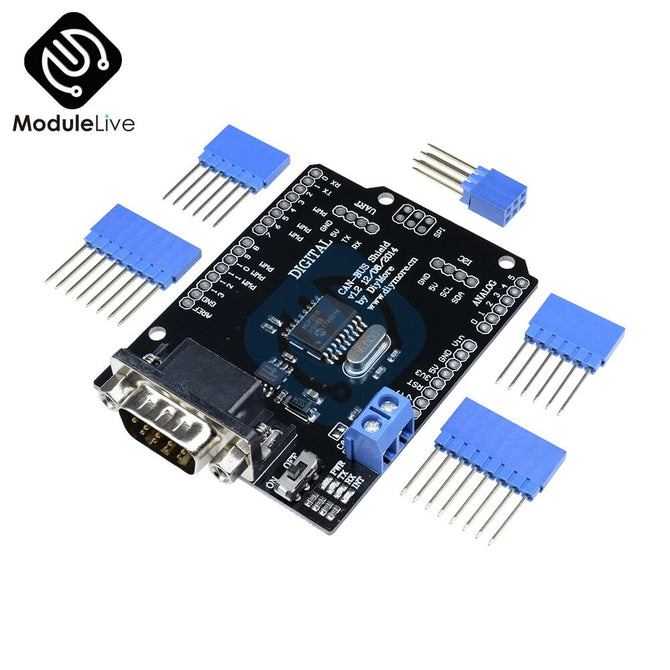

This CAN-BUS Shield adopts MCP2515 CAN Bus controller with SPI
interface and MCP2551 CAN transceiver to give your for Arduino /Seeeduino CAN-BUS capibility.
With an OBD-II converter cable added on and the OBD-II library imported,
you are ready to build an onboard diagnostic device or data logger.
Features:
Implements CAN V2.0B at up to 1 Mb/s
SPI Interface up to 10 MHz
for Ariduino / Freaduino Completely compatible
Standard (11 bit) and extended (29 bit) data and remote frames
Industrial standard 9 pin sub-D connector
Two receive buffers with prioritized message storage
Operating voltage: DC5-12V
Size: 78mmx53.5m
Package Included:
1PCS* MCP2515 Can Bus Shield Board SPI Interface 9 Pins Standard Sub-D Connector Module DC 5-12V For Arduino Seeeduino
