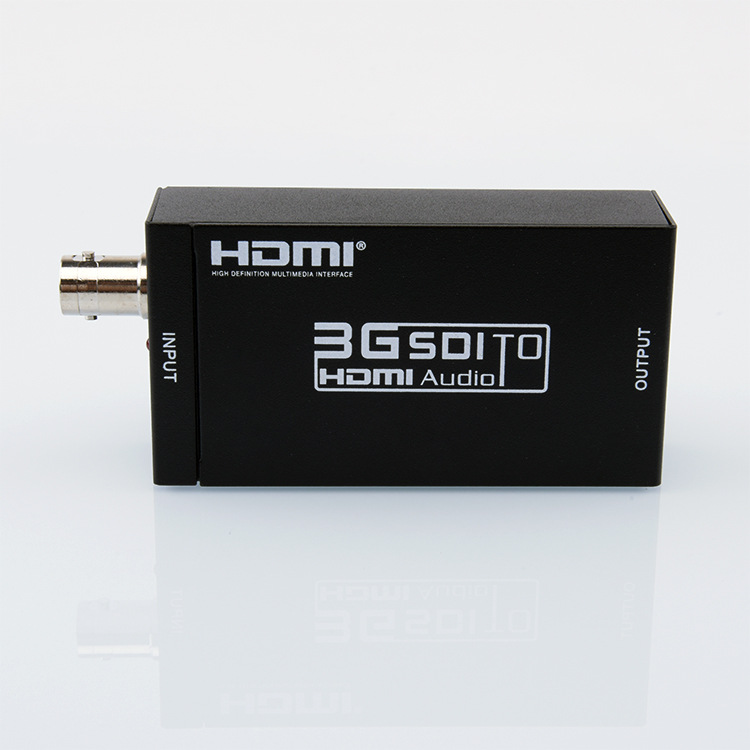

ZHQ-2 3G sdi to hdmi converter SDI to HDMI high-definition video transmission connection TV broadcast level

The MINI SDI to HDMI converter allows SD-SDI, HD-SDI and 3G-SDI signals to be shown on HDMI/SDI displays
while ensuring high bit rates of 2.970 Gbit/s to give you fast signal transmission without any loss. For
professionals this means that it is now easier to distribute and extend your 3G SDI signal while giving you the
ability to display your work on HDMI displays thanks to the built in HDMI converter

Features:
Operation at 2.970Gbit/s, 2.970/1.001Gbit/s, 1.485Gbit/s, 1.485/1.001Gbit/s and 270Mbits/s
Supports SMPTE 425M (Level A and Level B), SMPTE 424M, SMPTE 292M, SMPTE 259M-C
Equalized and re-clocked loop output? Integrated audio de-embedder for a maximum of 8 channel, 48 kHz audio
Conversion from SMPTE 425M level B to Level A 1080p 50/59.94/60 4:2:2 10-bit
Connect with other units to extend your signal over long distances

Specificaitons

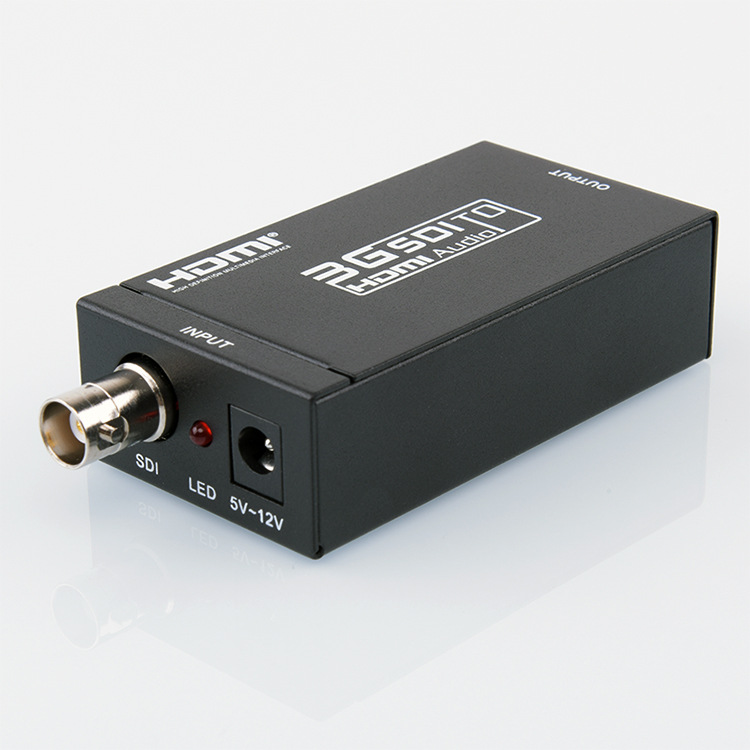

Input Port: 1 x BNC (SDI/HD-SDI/3G-SDI)

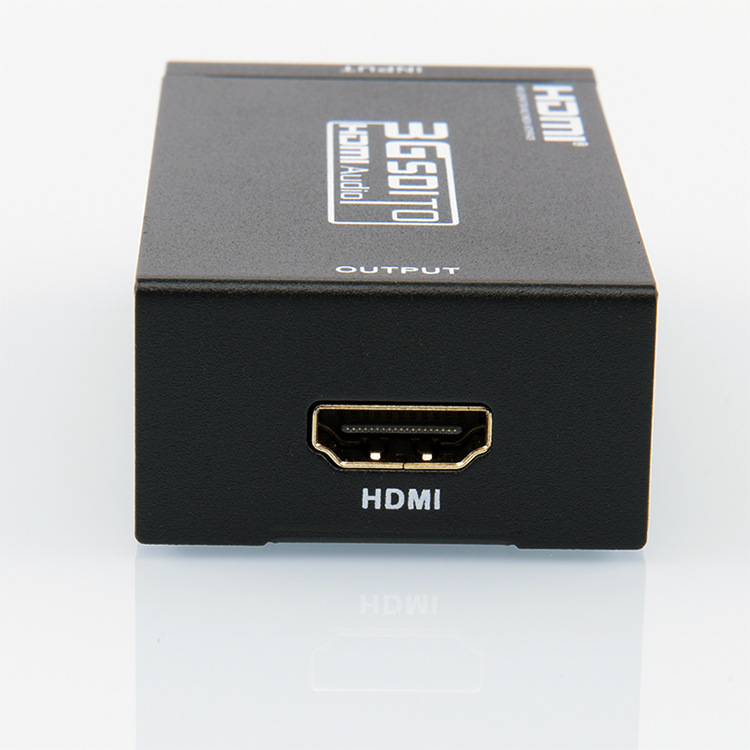

Output Port: 1 x HDMI,
SMPTE Standard: 425M Level A & B, 424M, 292M, 259M-C
SDI Transmission Rates: 2.970 Gbit/s and 2.970/1.001 Gbit/s
In/Output Resolution: 480i, 576i, 720p@50/59.94,60 , 1080i@50/59.94/60, 1080p@23.98/24/25/29.97/30/50/59.94/60,
1080PsF@23.98/24/25/29.97/30
Weight: 205g
Size: 100(W) x65(D) x 25(H) mm

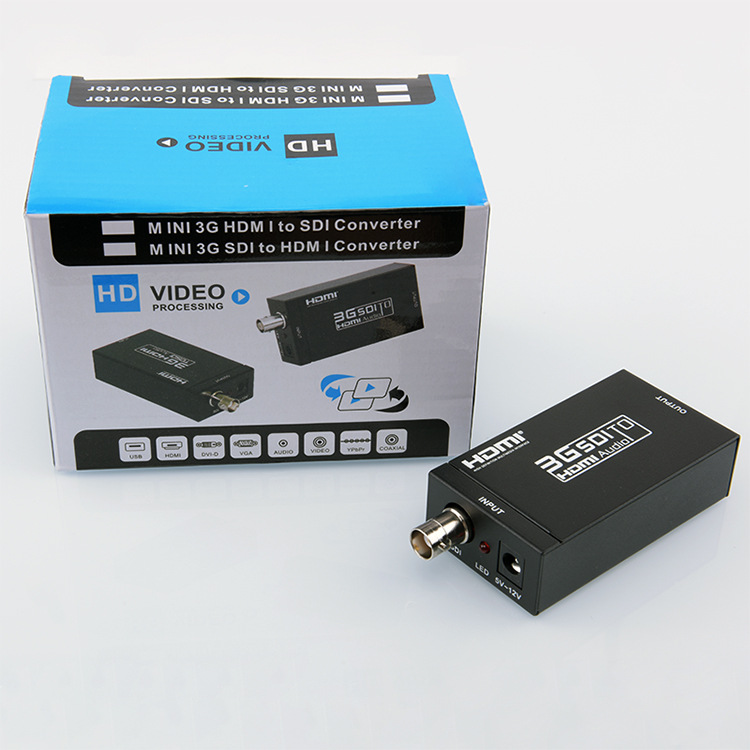

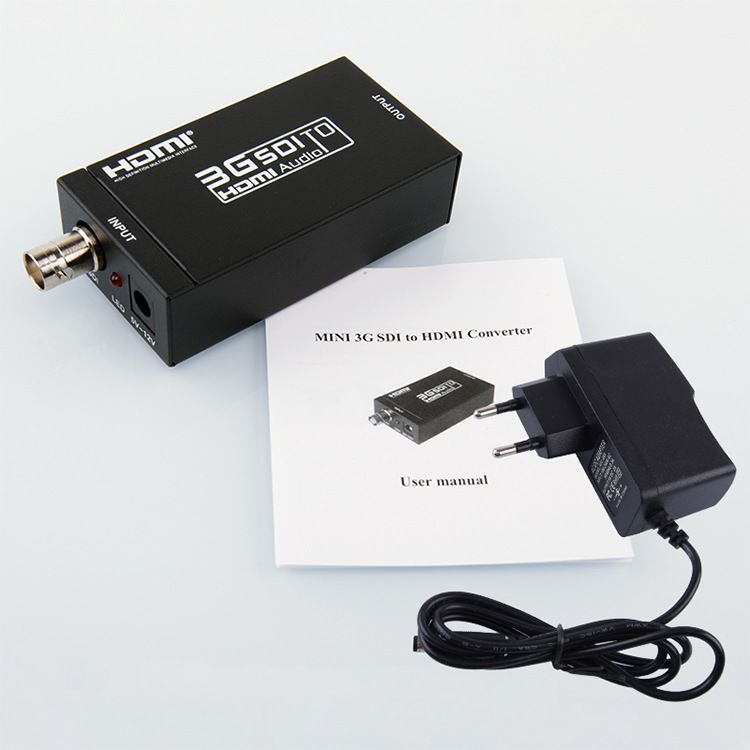

Package Content:
1 x MINI 3G HD SDI 1080P to HDMI Converter Adaptor (002-02040007BK /E4)
1 x AC Adaptor
1 x User manual

The MINI SDI to HDMI converter allows SD-SDI, HD-SDI and 3G-SDI signals to be displayed on HDMI/SDI displays.
At the same time, ensure the high bit rate of 2.970 Gbit / s, providing you with fast signal transmission without any loss. about
undefined
undefined

undefined
undefined
支持SMPTE 425M(A级和B级)，SMPTE 424M，SMPTE 292M，SMPTE 259M-C
undefined
undefined
undefined

Specificaitons
undefined
Output: 1 x HDMI,
SMPTE standard: 425m class A and B, 424m, 292m, 259m-c
undefined
I/O resolutions: 480i, 576i, 720P @ 50/59.94, 60, 1080I @ 50/59.94/60, 1080P @ 23.98/24/25/29.97/30/50/59.94/.
1080PsF@23.98/24/25/29.97/30
undefined
undefined

Package content:
1 MINI 3G HD SDI 1080P to HDMI converter adapter (002-02040007BK/E4)
undefined
1 x用户手册
