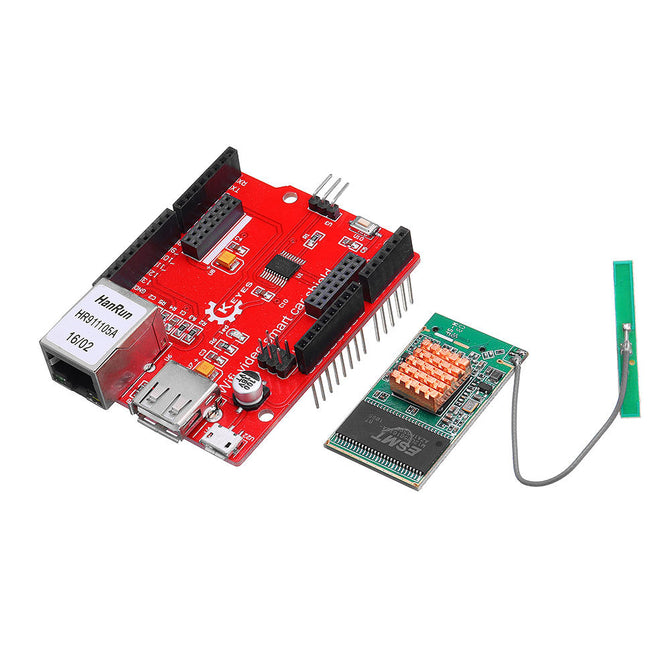

KEYES RT5350 Openwrt Router WiFi Wireless Video Expansion Board For Raspberry Pi wholesale bulk price

KEYES RT5350 Openwrt Router WiFi Wireless Video Expansion Board For Raspberry Pi wholesale bulk price

US$ 21.99

: In stock

:

Compatibility To confirm that this part fits your vehicle, please enter your vehicle's details below. Year: Select Make: Select Model: Select Submodel: Select Trim: Select Engine: Select Clear All This...
Add to wishlist
Share:

Compatibility

To confirm that this part fits your vehicle, please enter your vehicle's details below.
  • Year:
    Select
    • Make:
      Select
      • Model:
        Select
        • Submodel:
          Select
          • Trim:
            Select
            • Engine:
              Select
              • Clear All
              This part is compatible with 0 vehicle(s). Show all compatible vehicles
              This part is compatible with 1 vehicle(s) matching
              This part is not compatible with
              Recent searches
                • Year
                • Make
                • Model
                • Submodel
                • Trim
                • Engine
                  Description:

                  RT5350 SoC combines Ralink's IE802.11n draft compatible with 1T1R M A C/BBP/PA/RF, high performance 360 MHZ MIPS24KEc CPU core, 5 ports integrated 10/100 Ethernet switch/PHY and USB host/device. Very few external components are required to use RT5350,2.4 GHz 802.11n Wireless products.
                  RT5350 uses Ralink's second generation 802.11n technology to achieve a longer range and better throughput. Embedded high-performance CPUs can easily manage advanced applications, such as WIFI data processing, without overloading the host processor. In addition, RT5350 also provides various hardware interfaces (SPI/I2S/I2C/PCM/UART/USB) to support a range of possible applications.
                  Support 16-bit SDR SDRAM (maximum 64MB).
                  Support booting from ROM, FLASH.
                  USB2.0 protocol.

                  Specification:

                  1. Embedded 1T1R 2.4G CMOS RF
                  2. Embedded 802.11n 1T1R with MLD Enhanced M A C / BBP
                  3. Embedded PA / LNA
                  4. 150 Mbps PHY data rate
                  5. 20 Mhz / 40 MHz channel width
                  6. Traditional and high overall mode
                  7. Compression block AGK
                  8. bluetooth coexistence
                  9. Multiple BSSIDs (up to 16)
                  10. WEP64 / 128, WPA, WPA2, WAPI engine
                  11. Q0S - WMM, WMM power saving
                  12. Hardware Frame Aggregation
                  13. Support 802.11h TPG
                  14. MIPS 24KEc 360 Mhz with 32 KB I cache / 16 KB D cache
                  15. Support 16-bit SDR SDRAM (up to 64 MB)
                  16. Support boot from ROM, FLASH
                  17. USB 2.0 HOST / Set i• Dual Mode x1
                  18. Embedded 5-port 10/100 Mbps Ethernet Switch and 5-Port UTP PHY
                  19. Support 5 10/100 UTP ports
                  20. Low Speed I / 0: GPIO, SPI, I2C, I2S, PCM, UART and JTAG
                  21. Package and I / 0 voltage
                  22. I / 0: 3.3 V I / 0

                  Package Included:

                  1 x Expansion Board
                  1 x                    RT5350 Module
