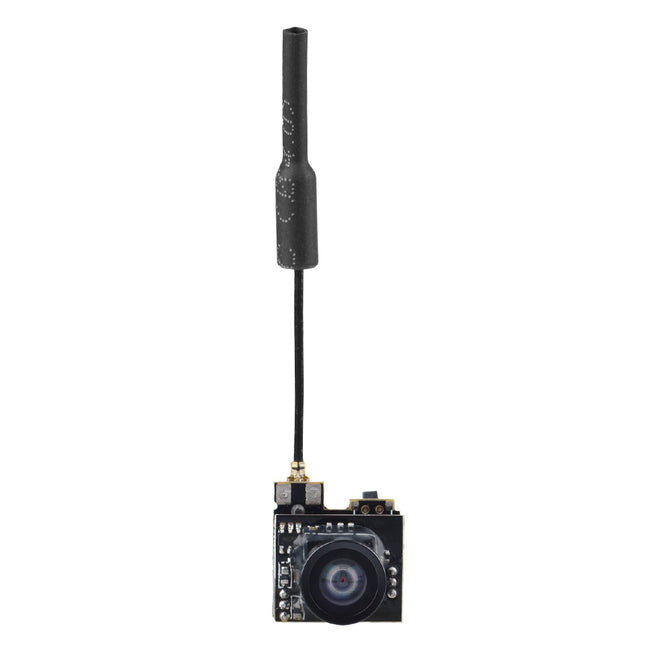

JMT FPV AIO Micro Camera 5.8G 25MW 40CH 800TVL Transmitter LST-S2+ FPV Camera With OSD Accessory
US$ 16.45
US$ 18.39
: In stock
: 617161
Description:Sensor: 1/4 "CMOSLens: M8 800TVL LensAngle: 150 ° FOV horizontal viewing angle of 170 ° DFOV diagonal perspective Format: NTSC / PAL (switchable)Power consumption: 380mA @ 3 · 7VPower: 3.6-5.5VLens...
Share:
Description:
Sensor: 1/4 "CMOS
Lens: M8 800TVL Lens
Angle: 150 ° FOV horizontal viewing angle of 170 ° DFOV diagonal perspective
Format: NTSC / PAL (switchable)
Power consumption: 380mA @ 3 · 7V
Power: 3.6-5.5V
Lens Mirror Diameter: 2.1mm IR coated FOV150 (horizontal)
Video Transmitter
Support video format: NTSC / PAL
Output Impedance: 75 Ohm
Output signal strength: 23 ~ 24dBm
Output Power: 25mW
Wireless Channel: 40CH
Antenna: RHCP circular polarization clover leaf antenna
Operating voltage: 3.6V ~ 5.5V
Current: 100mA
Audio carrier: 6.5MHz
Button function
Short press (Apr. 1 sec or less): Change channels 1-8
Long press (More than 1.5 sec): Change bands A-B-E-F-R
Long + press (More than 3 sec): Change NTSC/PAL system
NTSC or PAL (selectable; Blue LED on= NTSC; Blue LED off=PAL)
Body
Weight: 3.6g
Size: 18x16x16mm (without antenna)
Feature:
AIO FPV camera, transmitter , antenna all 3 functions in one limit size and weight
150 ° FOV horizontal viewing angle of 170 ° DFOV diagonal perspective
Five bands 40 channels with Race band
Sensor: 1/4 "CMOS
Lens: M8 800TVL Lens
Angle: 150 ° FOV horizontal viewing angle of 170 ° DFOV diagonal perspective
Format: NTSC / PAL (switchable)
Power consumption: 380mA @ 3 · 7V
Power: 3.6-5.5V
Lens Mirror Diameter: 2.1mm IR coated FOV150 (horizontal)
Video Transmitter
Support video format: NTSC / PAL
Output Impedance: 75 Ohm
Output signal strength: 23 ~ 24dBm
Output Power: 25mW
Wireless Channel: 40CH
Antenna: RHCP circular polarization clover leaf antenna
Operating voltage: 3.6V ~ 5.5V
Current: 100mA
Audio carrier: 6.5MHz
Button function
Short press (Apr. 1 sec or less): Change channels 1-8
Long press (More than 1.5 sec): Change bands A-B-E-F-R
Long + press (More than 3 sec): Change NTSC/PAL system
NTSC or PAL (selectable; Blue LED on= NTSC; Blue LED off=PAL)
Body
Weight: 3.6g
Size: 18x16x16mm (without antenna)
Feature:
AIO FPV camera, transmitter , antenna all 3 functions in one limit size and weight
150 ° FOV horizontal viewing angle of 170 ° DFOV diagonal perspective
Five bands 40 channels with Race band
| Color | black |
| Model | LST-S2+ FPV |
| Form Color | Black |
| Material | Compound material |
| Quantity | 1 set |
| Compatible Model | RC Racing Drone |
| Packing List | 1 X Mini Camera 1 X Cable 1 X English user manual |
Dimensions: 0.71 in x 0.63 in x 0.63 in (1.8 cm x 1.6 cm x 1.6 cm)
Weight: 0.13 oz (4 g)
