Fire Flame Sensor Module IR Infrared Flame Detection Sensor Module Flame for STM32 Raspberry pi

Overview

• Sensitive to flame spectrum
• Features wide range voltage comparator LM393
• Adjustable sensitivity
• Signal output indicator

Specifications

• Spectrum range: 760nm ~ 1100nm
• Detection angle: 0 - 60 degree
• Power: 3.3V ~ 5.3V
• Operating temperature: -25 degrees Celsius ~ 85 degrees Celsius
• Dimension: 29.2mm * 11.2mm
• Mounting holes size: 2.0mm

Applications

• Fire detection
• Fire fighting robot
• Fire alarm

How to Use

In the case of working with a MCU:

• VCC ↔ 3.3V ~ 5.3V
• GND ↔ power supply ground
• AOUT ↔ MCU.IO (analog output)
• DOUT ↔ MCU.IO (digital output)

Note: the Flame Sensor is used for detecting fire without any fire-protection for itself, please keep distance from the fire to avoid damage.

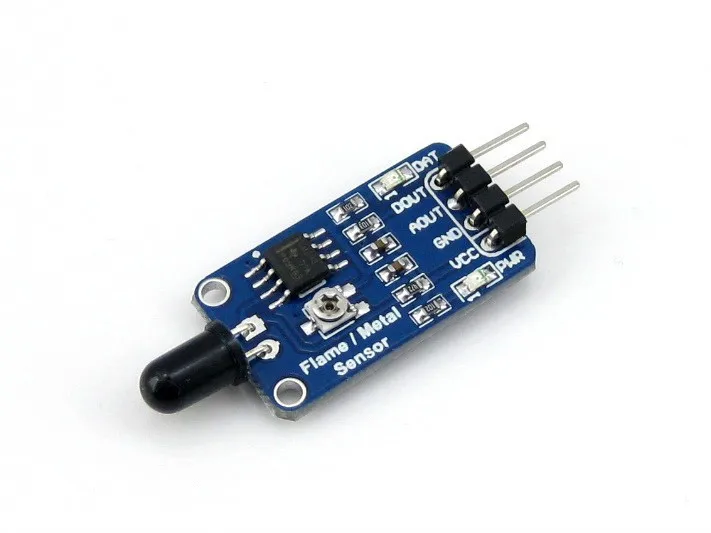

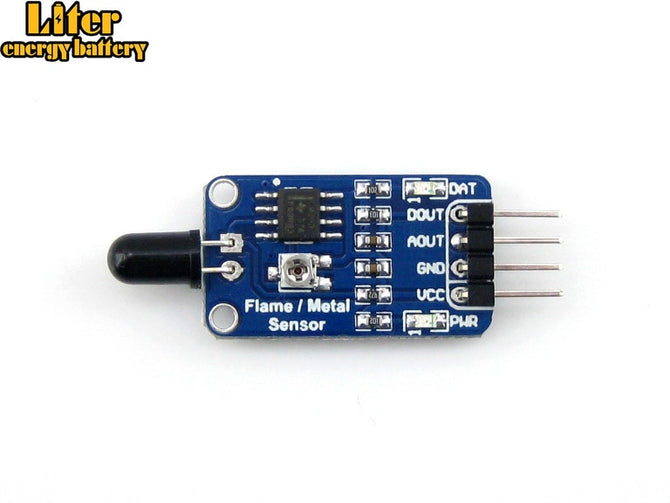

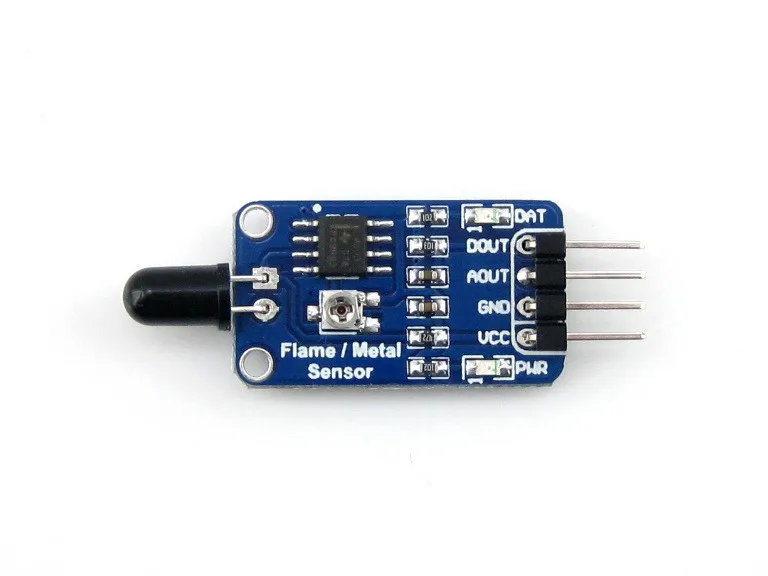

Photos





Package Contains

• Flame Sensor × 1
• 4-pin custom connector jumper wire × 1
