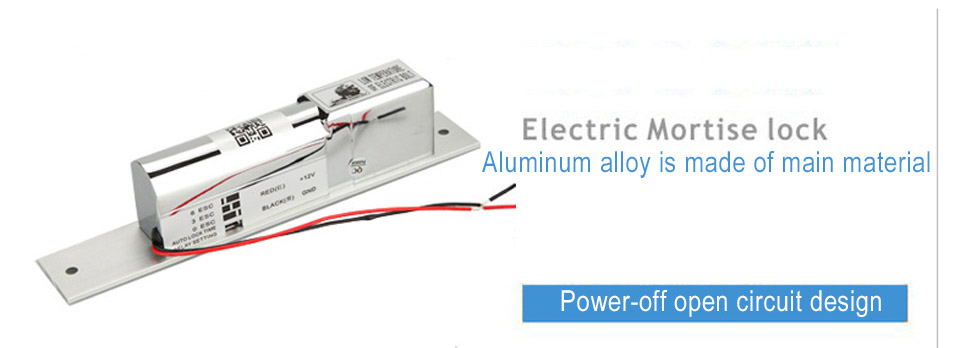

Electric Low Pressure Mortise Lock For Framed Glass Door, Access Control Power Lock Silver

1: Two-core high-end delay electric plug lock ultra-low temperature

2: With the finger pull switch adjustment delay time (0 seconds, 3 seconds, 6 seconds seconds)

3: The electric lock adopts the working mode of power-on locking and power-off unlocking. The working voltage of the electric lock is DC12V. There is also a third gear inside the electric lock, and the lock delay time can be selected to prevent the door from being closed and the lock tongue has been ejected.

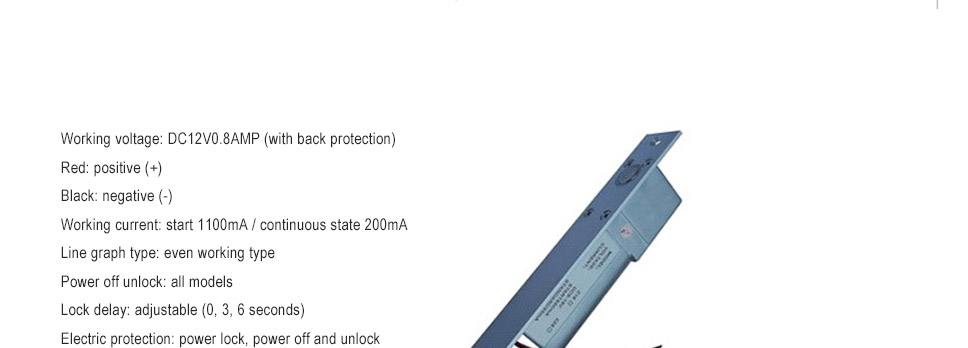

Working voltage: DC12V 0.8AMP (with back protection)

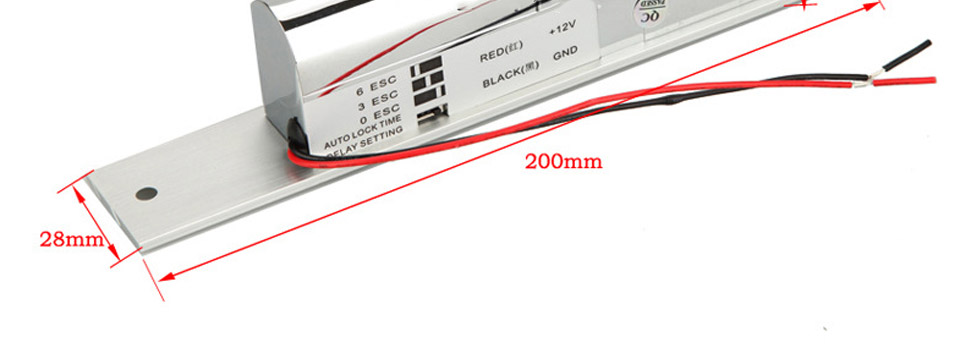

Red: positive (+)

Black: negative (-)

Working current: start 1100mA / continuous state 200mA

Coil type: continuous working type

Power off unlock: all models

Lock delay: adjustable (0, 3, 6 seconds)

Power failure protection: power lock, power off and unlock

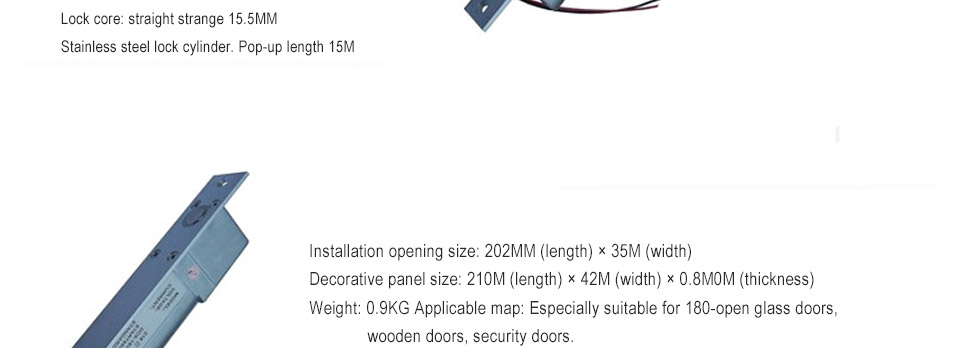

Lock cylinder: 15.5MM stainless steel lock cylinder. Popup length 15MM

Installation opening size: 202MM (length) ¡Á 35MM (width) (the depth of the pit can not be less than 43MM)

Decorative panel size: 210MM (length) ¡Á 42MM (width) ¡Á 0.8MM (thickness)

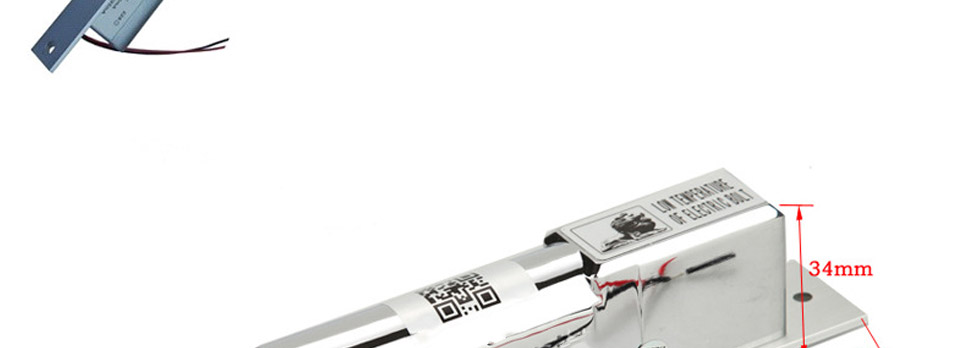

Panel size: 202MM (length) ¡Á 34MM (width) ¡Á 3MM (thickness)

Weight: 0.9KG

Scope of application: Especially suitable for 180-open glass doors, wooden doors, security doors.
