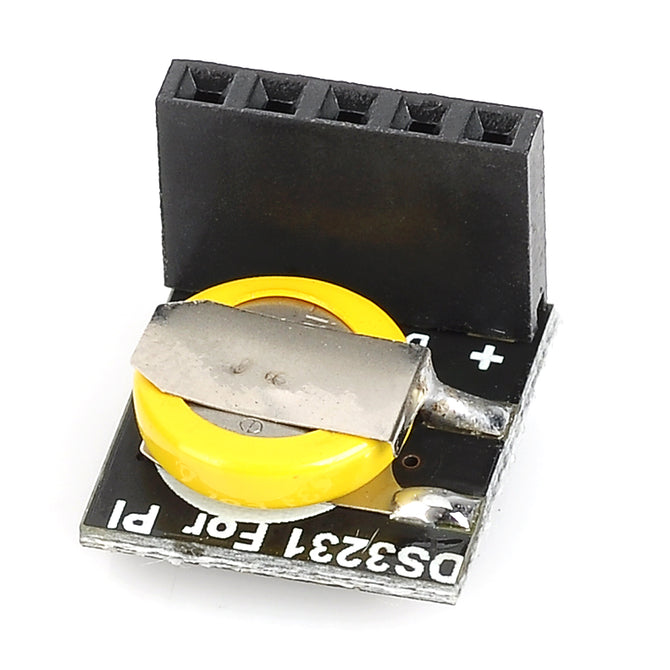

DS3231 RTC Board Real Time Clock Module for Arduino Raspberry Pi
US$ 1.59
US$ 2.83
: In stock
: 277258
Description:This board can be used with Arduino boardModule itself can adapt 3.3V and 5V systems without level conversion.Features:1. Within -40°C to +85 ° C temperature range, timing accuracy is maintained...
Share:
| Description: This board can be used with Arduino board Module itself can adapt 3.3V and 5V systems without level conversion. Features: 1. Within -40°C to +85 ° C temperature range, timing accuracy is maintained at ± 5ppm (± 0.432 sec / day). 2. Provide battery backup for continuous timing. 3. Low-power. 4. Device package and function compatible with the DS3231. 5. Complete clock functions include seconds, minutes, hours, day, date, month and year timing, and provide valid to 2100. 6. Two calendar alarm. 7. 1Hz and 32.768kHz output. 8. Reset button and button input. 9. High-speed (400KHz) I2C serial bus. 10. +2.3 V to +5.5 V supply voltage. 11. ±3°C accuracy digital temperature sensor. 12. -40°C to +85°C operating temperature range. 13. 16-pin SO (300mil) package |
|||||||||
|
|||||||||
| Packing List | 1 x RTC module | ||||||||
