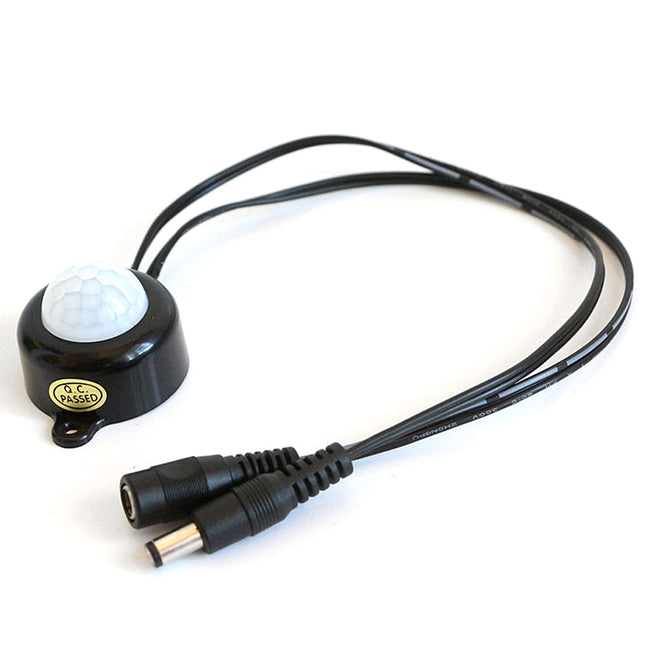

DC12V 5A PIR Body Infrared Motion Sensor Detector Control Photosensitive Sensor Switch for LED Strip Light, DC Connector
US$ 5.88
US$ 10.05
: In stock
: 515389
Product Features:Easy to install and simple to use.Photosensitive and light control-when there is a light source in the environment, it does not automatically open. When the environment is darker, it...
Share:
Product Features:
Easy to install and simple to use.
Photosensitive and light control-when there is a light source in the environment, it does not automatically open. When the environment is darker, it opens the sensing mode.
Adjust the light soft and stable, no flickering.
You can conveniently to let the light auto on/off. The switch can detect human body's infrared.
According to actual needs, users can install the human body sensors in the appropriate environment.
Applications: LED Strip, incandescent lamp, energy-saving lamps, LED lamp, fluorescent lamp etc.
Product Specifications:
Operating Voltage: 5-24V
Sensing Distance: 5-7m
Output Current: 5A
Sensing Angle: 120¡ã cone angle
Quiescent Current: < 50uA
Trigger Mode: Continuous Trigger
Delay Time: Default 18s
Adjustable Range of Delay Time: 18-350s
Operating Temperature: -20 ¡ãC ¡« +50 ¡ãC
Easy to install and simple to use.
Photosensitive and light control-when there is a light source in the environment, it does not automatically open. When the environment is darker, it opens the sensing mode.
Adjust the light soft and stable, no flickering.
You can conveniently to let the light auto on/off. The switch can detect human body's infrared.
According to actual needs, users can install the human body sensors in the appropriate environment.
Applications: LED Strip, incandescent lamp, energy-saving lamps, LED lamp, fluorescent lamp etc.
Product Specifications:
Operating Voltage: 5-24V
Sensing Distance: 5-7m
Output Current: 5A
Sensing Angle: 120¡ã cone angle
Quiescent Current: < 50uA
Trigger Mode: Continuous Trigger
Delay Time: Default 18s
Adjustable Range of Delay Time: 18-350s
Operating Temperature: -20 ¡ãC ¡« +50 ¡ãC
| General | |
|---|---|
| Material | Plastic |
| Quantity | 1 piece |
| Specification | |
| Rate Voltage | 12V |
| Working Current | 5A |
| Dimensions & Weight | |
|---|---|
| Dimensions | 1.57 in x 1.18 in x 0.98 in (4 cm x 3 cm x 2.5 cm) |
| Weight | 0.92 oz (26 g) |
| Packing List |
|---|
|
1 ¡Á PIR sensor switch 1 ¡Á Screw 1 x Double-sided Tape |
