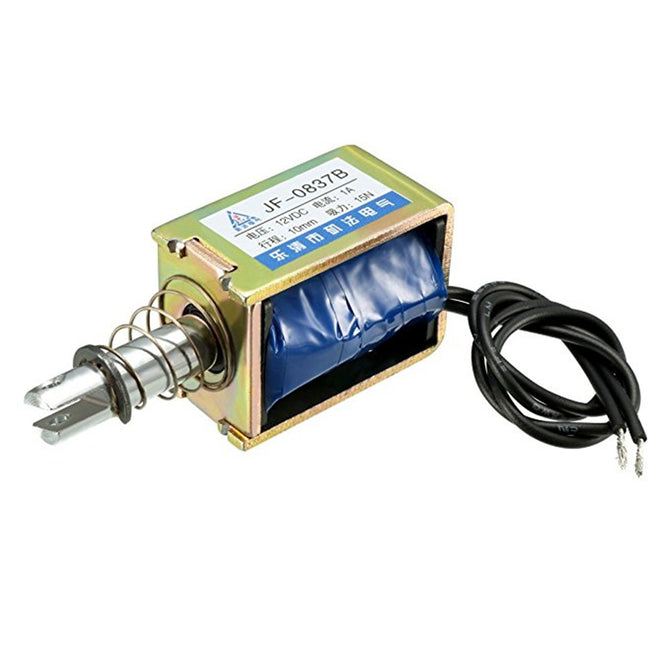

BTOOMET JF-0837B DC 12V 1A 15N 10mm Pull Push Type Linear Motion Solenoid Electromagnet

model : JF-0837B Material; Metal, Color; Silver Blue
Force: 15N; Travel: 10mm
Rated Voltage: DC 12V; Current: 1A; Power: 24W;
Cable Length: 160mm/7.09"; Push Bar Dia: 8mm/0.31"; Total Length: 7cm/2.76"; Mounting Hole Dia.: M3
Type: Push Pull Type; Size: 37 x 20 x 26.5mm/1.46" x 0.79" x 1.04"(L*W*H)
Package Content: 1 x DC Solenoid Electromagnet
Description:
Push pull Type, linear motion, plunger spring return, DC solenoid electromagnet.
Support DC 12V voltage, high power, pull push type, linear motion, is easy to install.
DC solenoid electromagnet mainly used in vending machines, transport equipment, office facility, household appliance, mechanical, etc.

Note:
Please pay attention:As an actuating element of an automation equipment ,because the current is large, the single cycle can not be electrified for a long time.The best operate time is in 2 seconds.If the operate time is too long,the electromagnet temperature will rise.Too high temperature can affect the life of the electromagnet.
Please take the electromagnet put down gently when you install it. The screw thread can make a corresponding change according to your demand. This product is small in size, please pay attention to in the process of using electricity, so as not to damage the electromagnet.
