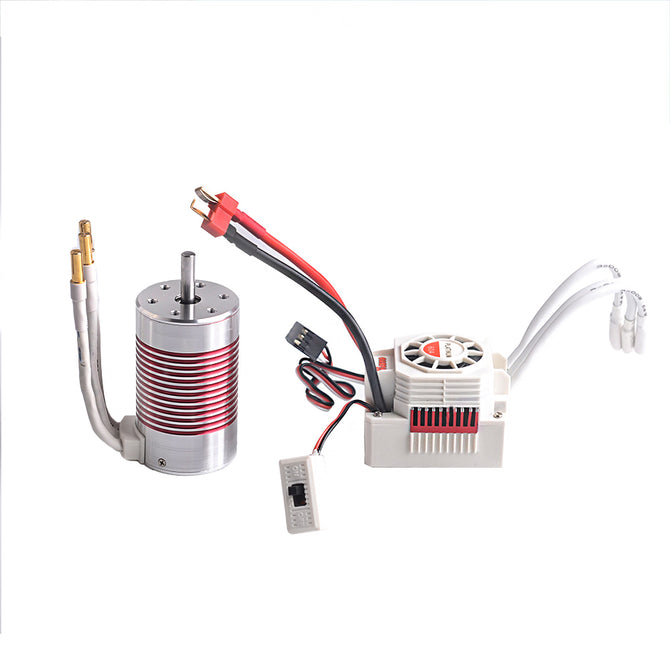

3660 2600KV Waterproof Brushless Motor + 60A ESC Set for 1/10 RC Remote Control Car Boat Truck
US$ 45.65
US$ 56.01
: In stock
: 608809
Description:3660 2600KV Slot Waterproof Brushless Motor 5mm4Poles design, high torque & high efficiency. The overall efficiency exceed 90 percentLow heat production, long lifetime, strong overload protection and it can function...
Share:
Description:
3660 2600KV Slot Waterproof Brushless Motor 5mm
4Poles design, high torque & high efficiency. The overall efficiency exceed 90 percent
Low heat production, long lifetime, strong overload protection and it can function 95% of its features without any heat sink appliance
High quality materials adopted: high intense aluminum alloy anodizing shell , front & back cover , high-performance temperature-resistant magnetic steel and imported high-speed bearing
Suitable for 1/10 RC Racing Car Boat
Specification:
Model: 3660
KV(RPM/V): 2600KV
Poles: 4
Watts: 1200W
Max voltage:<19V
Max Amps: 63A
Shaft diameter: 5mm
Connector: 4.0mm gold plug
Recommend model: 1/10 RC Car,Boat
Electronic Speed Controller Specifications:
Cont Current: 60A
Burst Current: 360A
Battery: 2-3 Cells Lipo / 4-9 Cells NiMh
BEC Output: 5.8V/3A (Switch Mode)
Power Supply Plugs: T Male
Motor Plugs: Female 4mm Bullet Connector
Motor Type
For 2s Lipo or 6 cells NiMH:
On-road: 3665-size or smaller motor with the KV<6000
Off-road / Buggy / monstruo: 3665-size or smaller motor with the KV<4000
For 3s Lipo or 9 cells NiMH:
On-road: 3665-size or smaller motor with the KV<4000
Off-road / Buggy / monstruo: 3656-size or smaller motor with the KV<3000
Size: 50.8 * 38.5 * 36.5mm
Weight: 91g / 3.2oz
Note:
Although this combo suitable for most 1/10 RC car/truck, please check the size especially the mounting holes of the motor before purchase.
The combo is waterproof for slight water. Don't put the ESC into water for a long time which may cause the fan burns.
Contact us to purchase the specified program card if you need.
3660 2600KV Slot Waterproof Brushless Motor 5mm
4Poles design, high torque & high efficiency. The overall efficiency exceed 90 percent
Low heat production, long lifetime, strong overload protection and it can function 95% of its features without any heat sink appliance
High quality materials adopted: high intense aluminum alloy anodizing shell , front & back cover , high-performance temperature-resistant magnetic steel and imported high-speed bearing
Suitable for 1/10 RC Racing Car Boat
Specification:
Model: 3660
KV(RPM/V): 2600KV
Poles: 4
Watts: 1200W
Max voltage:<19V
Max Amps: 63A
Shaft diameter: 5mm
Connector: 4.0mm gold plug
Recommend model: 1/10 RC Car,Boat
Electronic Speed Controller Specifications:
Cont Current: 60A
Burst Current: 360A
Battery: 2-3 Cells Lipo / 4-9 Cells NiMh
BEC Output: 5.8V/3A (Switch Mode)
Power Supply Plugs: T Male
Motor Plugs: Female 4mm Bullet Connector
Motor Type
For 2s Lipo or 6 cells NiMH:
On-road: 3665-size or smaller motor with the KV<6000
Off-road / Buggy / monstruo: 3665-size or smaller motor with the KV<4000
For 3s Lipo or 9 cells NiMH:
On-road: 3665-size or smaller motor with the KV<4000
Off-road / Buggy / monstruo: 3656-size or smaller motor with the KV<3000
Size: 50.8 * 38.5 * 36.5mm
Weight: 91g / 3.2oz
Note:
Although this combo suitable for most 1/10 RC car/truck, please check the size especially the mounting holes of the motor before purchase.
The combo is waterproof for slight water. Don't put the ESC into water for a long time which may cause the fan burns.
Contact us to purchase the specified program card if you need.
| Color | white and red |
| Model | 3665 2600KV Motor+60A ESC |
| Material | composite material |
| Quantity | 1 set |
| Compatible Model | 1/10 RC Remote Control Car Boat Truck |
| Packing List | 1 X 3660 2600KV Brushless Motor 1 X 60A Brushless ESC 1 X Manual |
Dimensions: 3.15 in x 1.65 in x 1.57 in (8.0 cm x 4.2 cm x 4.0 cm)
Weight: 11.82 oz (335 g)
