1PCS Tiger 911 Auto telephone Dialer Alarm system Accessories Calling Transfer Tool Fixed Terminal Put in NC NO or voltage White
US$ 22.90
US$ 25.08
: In stock
: 916552899
Item specifics Brand Name:BONLOR Item Type:Communication Converter Size:15*7*4cm Model Number:Tiger 911 Communication Interface:Wired Power:9VDC Product Description Features: Working voltage: DC11V TO 15 v Static electricity: 20 ma (at DC12V) Dialing...
Share:
Item specifics
Brand Name:BONLOR
Item Type:Communication Converter
Size:15*7*4cm
Model Number:Tiger 911
Communication Interface:Wired
Power:9VDC
Product Description
Features:
Working voltage: DC11V TO 15 v
Static electricity: 20 ma (at DC12V)
Dialing method: audio/pulse, J1 jumper selection
Alarm: N.C., N.O. and voltage signal jumper J2, J3
The recording time: 20 seconds, after power off the phone number, voice is not lost
Phone store telephone number: 4 group, each group may be deposited in the longest 16 digits
Secondary private password: 0-6 private password, remove top three available alarm, as a whole (6) code is used to change the Settings
The factory password: 911

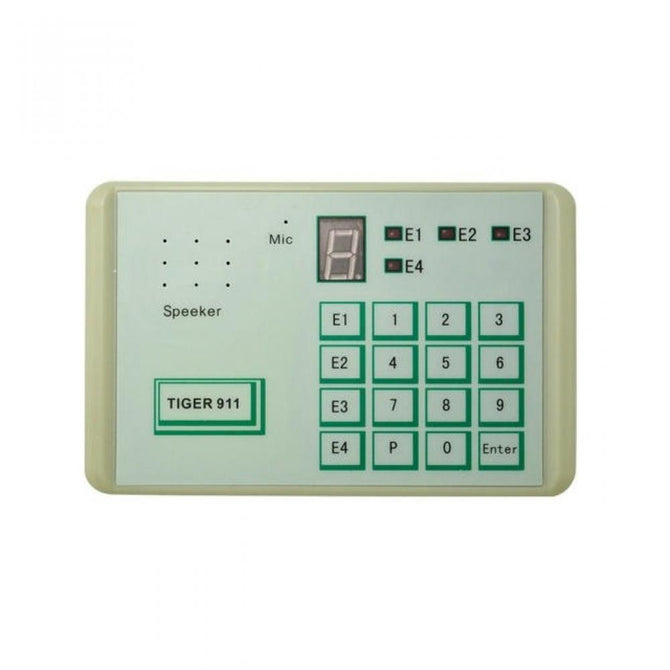

(1) the speaker
(2) the microphone
(3) 7 segment display: to store the number of input, will show the number at the same time
(4) the E4 light: set the E4 number, this goes on
(5) E1 indicator light: setting E1 telephone or mobile phone number, this goes on
( 6) E2 status of E2 telephone or mobile phone number, lamp goes on
(7) E3 indicator light: setting E3 telephone or mobile phone number, this goes on
(13) P button can be for the following purposes:
Can store 6 digit number as a password
When used in automatic return system voice switchboard, can be used as the pause,1 time is stand for 2 sec, 2 times is stand for 4 sec and so on
Packaging Details
Unit Type: piece
Package Weight: 0.26kg (0.57lb.)
Package Size: 12cm x 12cm x 4cm (4.72in x 4.72in x 1.57in)
Brand Name:BONLOR
Item Type:Communication Converter
Size:15*7*4cm
Model Number:Tiger 911
Communication Interface:Wired
Power:9VDC
Product Description
Features:
Working voltage: DC11V TO 15 v
Static electricity: 20 ma (at DC12V)
Dialing method: audio/pulse, J1 jumper selection
Alarm: N.C., N.O. and voltage signal jumper J2, J3
The recording time: 20 seconds, after power off the phone number, voice is not lost
Phone store telephone number: 4 group, each group may be deposited in the longest 16 digits
Secondary private password: 0-6 private password, remove top three available alarm, as a whole (6) code is used to change the Settings
The factory password: 911
(1) the speaker
(2) the microphone
(3) 7 segment display: to store the number of input, will show the number at the same time
(4) the E4 light: set the E4 number, this goes on
(5) E1 indicator light: setting E1 telephone or mobile phone number, this goes on
( 6) E2 status of E2 telephone or mobile phone number, lamp goes on
(7) E3 indicator light: setting E3 telephone or mobile phone number, this goes on
(13) P button can be for the following purposes:
Can store 6 digit number as a password
When used in automatic return system voice switchboard, can be used as the pause,1 time is stand for 2 sec, 2 times is stand for 4 sec and so on
Packaging Details
Unit Type: piece
Package Weight: 0.26kg (0.57lb.)
Package Size: 12cm x 12cm x 4cm (4.72in x 4.72in x 1.57in)
| Dimensions & Weight | |
|---|---|
| Dimensions | 4.72 in x 1.57 in x 4.72 in (12 cm x 4 cm x 12 cm) |
| Weight | 9.17 oz (260 g) |
| Packing List |
|---|
| Product |
