5v 1 channel relay
Specification:
1. VCC: Power interface ,5V
2. GND: Ground
3. IN: Control interface .Drive Current at least 4mA
4. COM: Control circuit ground ,Connect to GND
5. Size: approx. 41 x 16 x 16mm/ 1.61 x 0.62 x 0.62''
6. Weight: approx. 12g
5v 2 channel relay
This is a 2 Channel 5V Relay interface board, Be able to control various appliances, and other equipments with large current. It can be controlled directly by Microcontroller(for Arduino , 8051, AVR, PIC, DSP, ARM, ARM, MSP430, TTL logic) .
1.5V 2-Channel Relay interface board, and each one needs 15-20mA Driver Current
2.Equiped with high-current relay, AC250V 10A ; DC30V 10A
3.Standard interface that can be controlled directly by microcontroller (8051, AVR, PIC, DSP, ARM, ARM, MSP430, TTL logic)
5V Relay Module 4-Channel
This is a 5V 4-Channel Relay interface board.
Be able to control various appliances, and other equipments with large current.
It can be controlled directly by Micro-controller (8051, AVR, PIC, DSP, ARM, ARM, MSP430, TTL logic) .
5V 4-Channel Relay interface board, and each one needs 50-60mA Driver Current.
Equiped with high-current relay, AC250V 10A ; DC30V 10A.
Indication LED's for Relay output status.
Application:
Supports all MCU control.
The industrial field.
PLC control.
Smart home control.
5v 8 channel relay
Size: 13.5 x 5.3 x 1.7cm (LxWxH)
Working voltage: 5V
Channel: 8 channel
This relay module is 5V active low.
It is an 8-channel relay interface board, which can be controlled directly by a wide range of microcontrollers such as for Arduino, AVR, PIC, ARM, PLC, etc.
It is also able to control various appliances and other equipments with large current.
Relay output maximum contact is AC250V 10A and DC30V 10A.
Standard interface can be directly connected with microcontrollers.
Red working status indicator lights are conducive to the safe use.
Widely used for all MCU control, industrial sector, PLC control, smart home control.
5v 6 channel relay
Description:
Material: Electrical components
Color: See pictures
5 V 6 Relay Module Channel for Arduino PIC ARM DSP AVR Raspberry Pi
Contact capacity of the 250V10A relay. Relay output normally open, normally closed;
Active. 5 V input voltage range signal relay: 0-5 V;
VCC system power. Power relay jd-vcc. Standard 5 V relay.
Size: 10.4*5.2cm/4.09"*2.05"
Quantity: 1Pc
Note:
1. Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
2. Please allow 0.5-1cm measuring deviation due to manual measurement.
1 cm = 0.3937 "
12v 1 channel relay
Description:
Power supply to meet the scope , DC 12V;
The power required by the by -line diagram , is not reversed , although the protection circuit , but not for a long time reversed ;
Product regulator slight fever is a normal phenomenon , long working hours have a normal relay heat phenomena are normal ;
Relay load power to give leave some margin should avoid high-power ( about 2000W) and long working environment , there will be some impact on the life of the product .
Features :
Double panel design PCB;
Chips made ??using stable and reliable control , stable and reliable performance , strong anti-interference , not false triggering , performance is superior than the CD4013 ;
Regulator has the power to provide adequate and stable voltage , and have enough vents to ensure stable and reliable product for a long time to work ;
With anti- reverse protection diode power , reverse power for a short time without any damage to the product ;
Use SONGLE genuine relay control load in 250V 10A ( AC ) and 30V 10A ( DC ) under load can withstand ;
Has a touch switch as product testing , stability testing of products directly ;
Can also trigger an external trigger switch , the products have a connection with a good seat and lead , more convenient to use ;
Triggering sensor module can also be used to do other triggers , are valid as long as the trigger is low , there are more functional expansion;
Parameters :
Supply Voltage :12V (DC) supply current : more than 100mA
Load : 250V 10A (AC) or 30V 10A (DC)
Life: 1 million times
12v 2 channel relay
This is a 2 Channel 12V Relay interface board, Be able to control various appliances, and other equipments with large current. It can be controlled directly by Microcontroller(For Arduino , 8051, AVR, PIC, DSP, ARM, ARM, MSP430, TTL logic) .
1.12V 2-Channel Relay interface board, and each one needs 15-20mA Driver Current
2.Equiped with high-current relay, AC250V 10A ; DC30V 10A
3.Standard interface that can be controlled directly by microcontroller (For Arduino , 8051, AVR, PIC, DSP, ARM, ARM, MSP430, TTL logic)

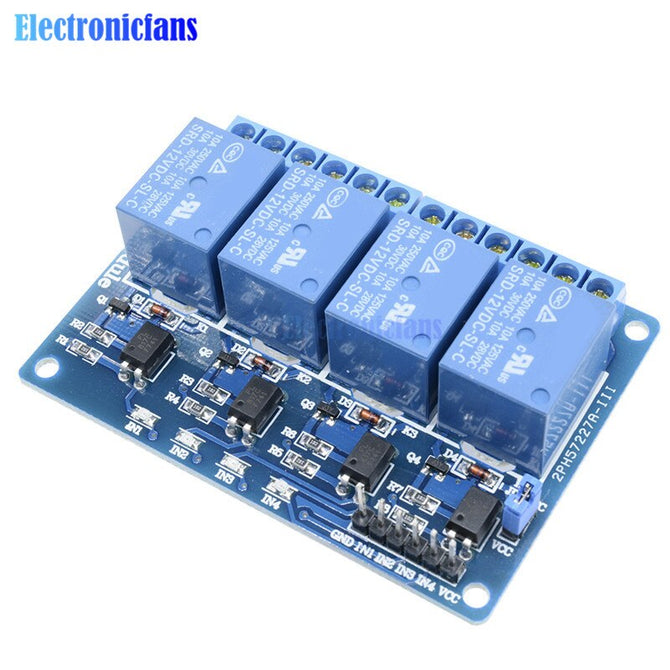

12v 4 channel relay
100% brand new and high quality
This is a 12V 4-Channel Relay interface board
Be able to control various appliances, and other equipments with large current
It can be controlled directly by Micro-controller (FOR Arduino , 8051, AVR, PIC, DSP, ARM, ARM, MSP430, TTL logic)
12V 4-Channel Relay interface board, and each one needs 50-60mA Driver Current
Equiped with high-current relay, AC250V 10A ; DC30V 10A
Indication LED's for Relay output status
Input IN1, IN2, IN3, IN4 signal low level effectively
VCC, GND power input end, can supply power alone
Support all single-chip control, industrial area, PLC control, household intelligent control
Application:
Supports all MCU control
The industrial field
PLC control
Smart home control
Size: 7.5*5.6*1.8cm/2.95*2.2*0.7"
12v 8 channel relay
Description：
This is a 12V 8-Channel Relay interface board, Be able to control various appliances, and other equipments with large current. It can be controlled directly by Micro-controller (For Arduino , 8051, AVR, PIC, DSP, ARM, ARM, MSP430, TTL logic) .
Features:
12V 8-Channel Relay interface board, and each one needs 50-60mA Driver Current.
Equiped with high-current relay, AC250V 10A; DC30V 10A.
Indication LED for Relay output status.
Size: Approx. 13.80*5.50*1.70cm(L*W*H)
