1 Set 3D Printer Parts General Add-on Heated Bed Power Expansion Module High Current 210A MOSFET Upgrade RAMPS
US$ 2.78
US$ 11.14
: In stock
: 63595
Style 1: Heated bed power module Based on powerful MOSFET HA210NO6 Size: 60*50mm Mounting holes: 3.2mm diameter, for M3 screws. Distance betweeen holes: 54*43mm Very powerful MOSFET to withstand...
Share:

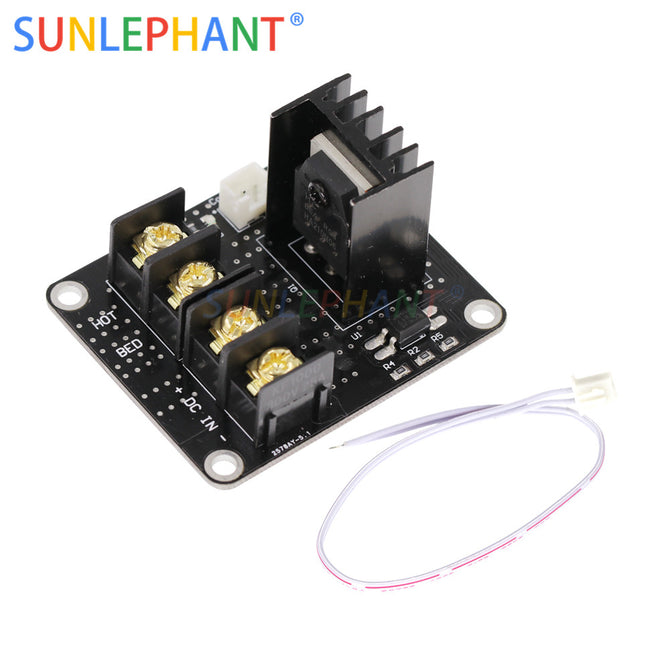

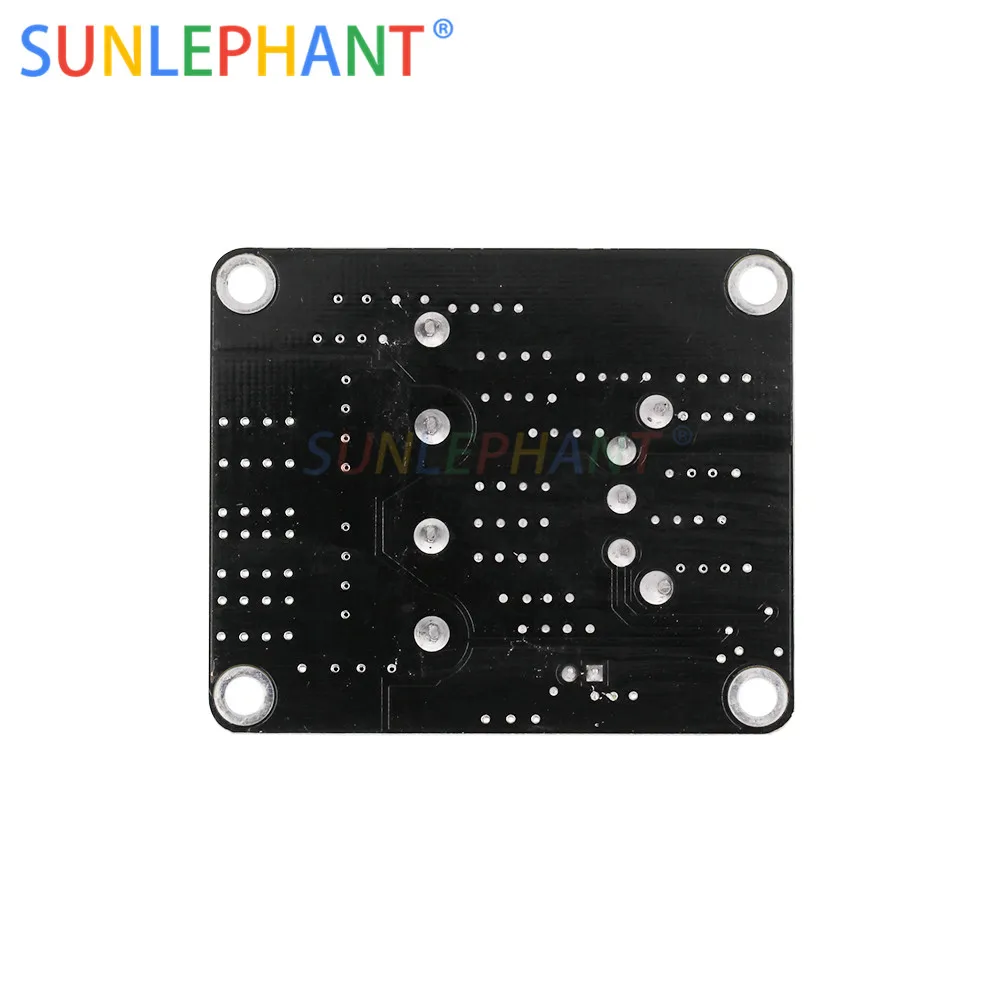

Style 1:
Heated bed power module
Based on powerful MOSFET HA210NO6
Size: 60*50mm
Mounting holes: 3.2mm diameter, for M3 screws.
Distance betweeen holes: 54*43mm
Very powerful MOSFET to withstand higher current than normal RAMPS or other 3D Printer controller can handle
Voltage: 12V-24V
Under the premise of normal cooling, it work stable under I(Max)=25A, the current must not exceed 25A while the process working

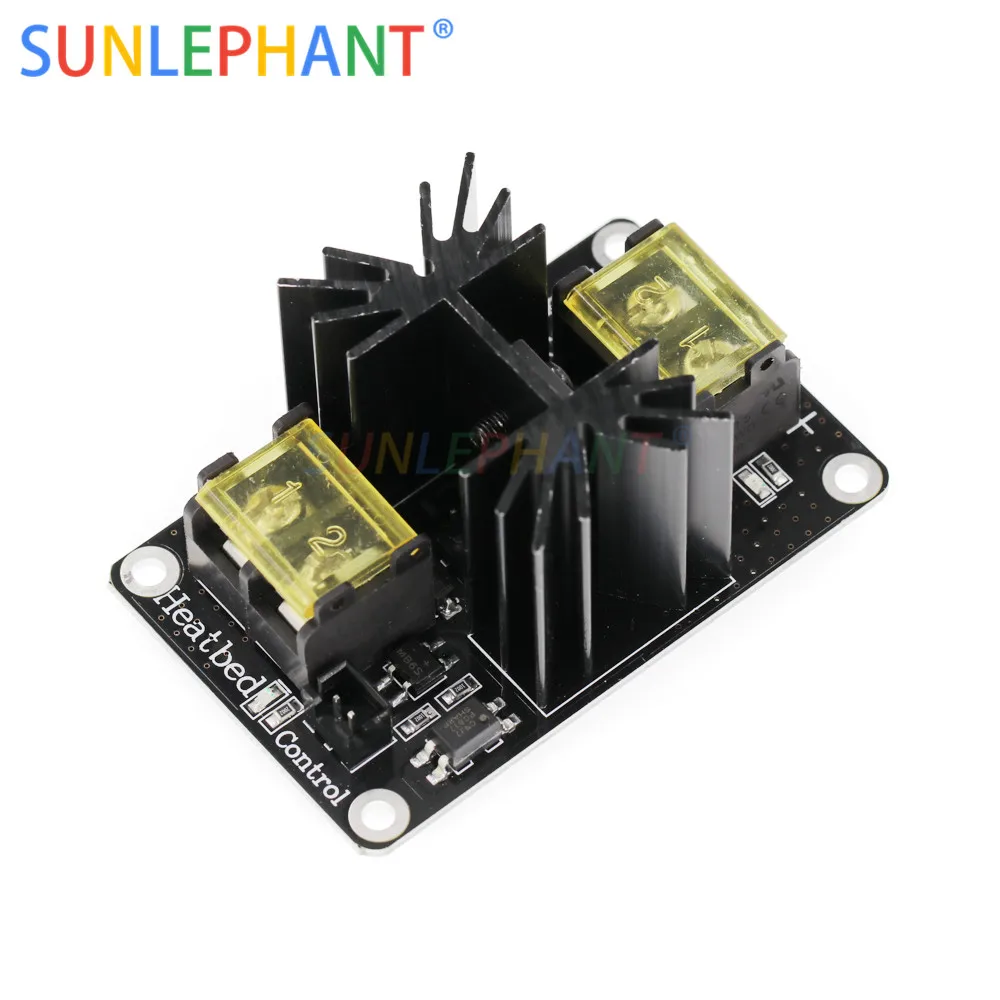

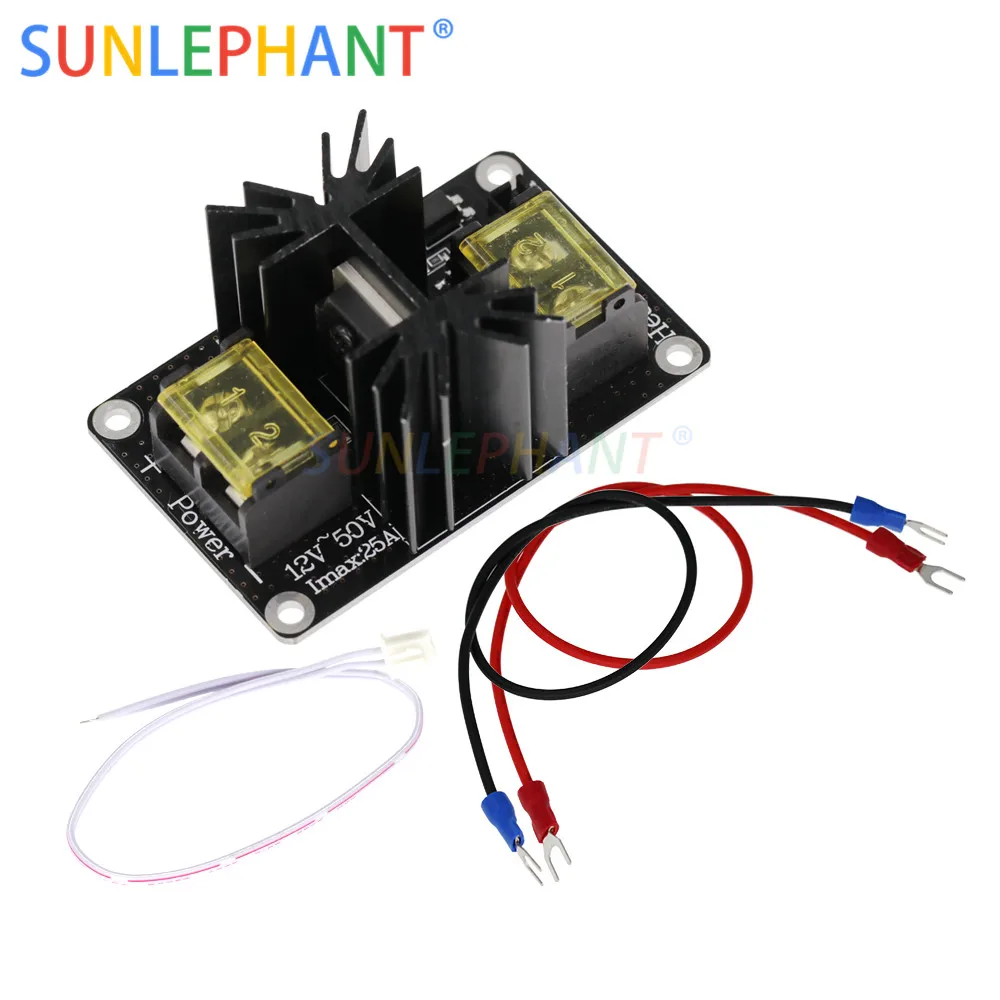

Style 2:
Size: 70*45mm
Mounting holes: 3.2mm diameter, for M3 screws.
Distance betweeen holes: 62.8*37.8mm
Very powerful MOSFET to withstand higher current than normal RAMPS or other 3D Printer controller can handle
Voltage: 12V-50V
Maximum current with active cooling: 210A
This module is based on power MOSFET and will allow PID control of the heated bed (DC-DC Relays usually do not allow this)
Under the premise of normal cooling, it work stable under I(Max)=30A, the current must not exceed 25A while the process working
