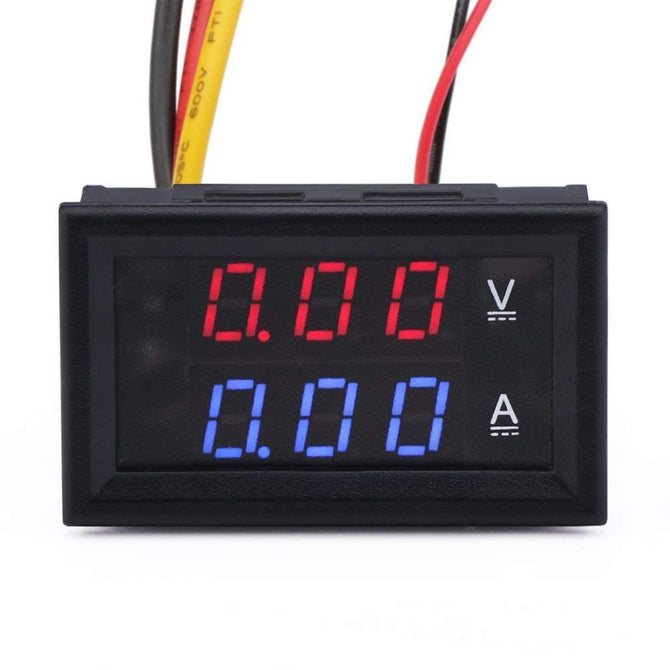

0.56inch Mini Digital Voltmeter Ammeter DC 100V 10A Voltmeter Current Meter Tester Blue+Red Dual LED Display Green Red Yellow
: In stock
: 59408
0.56inch Mini Digital Voltmeter Ammeter DC 100V 10A Voltmeter Current Meter Tester Blue+Red Dual LED Display Green Red Yellow
Features:
- Working voltage of Meter itself:DC 4 - 30V(The maximum input voltage can not exceed 30V. Otherwise the meter will be burned)
- Working current of Meter itself:≤20mA
- Voltage Measuring range: DC 0 - 100V
- Current Measuring range: DC 0 - 10A
- Voltage resolution (V): 0.1V
- Current resolution (A): 0.01A
- Measure accuracy: 1% (± 1 digit)
- Display: 0.28" digital tube, Two color blue and red
- Refresh rate: about 300mS / times
- Dimensions:48mm*29mm*26mm
- Operation Temp: -10°-+65°
Package Content:
1 x DC 0-100V Voltmeter Ammeter or 1 X Dc 4.5-30V Digital voltmeter
Specifications:
Type :2 Wire
Measuring range: 4.5-30V
Allowable error: accurate to 0.01V below 10V, accurate to 0.1V above 10V, allowable error of 1% (+/-1 words)
Display mode: 3-digit 0.56′′ LED digital tube

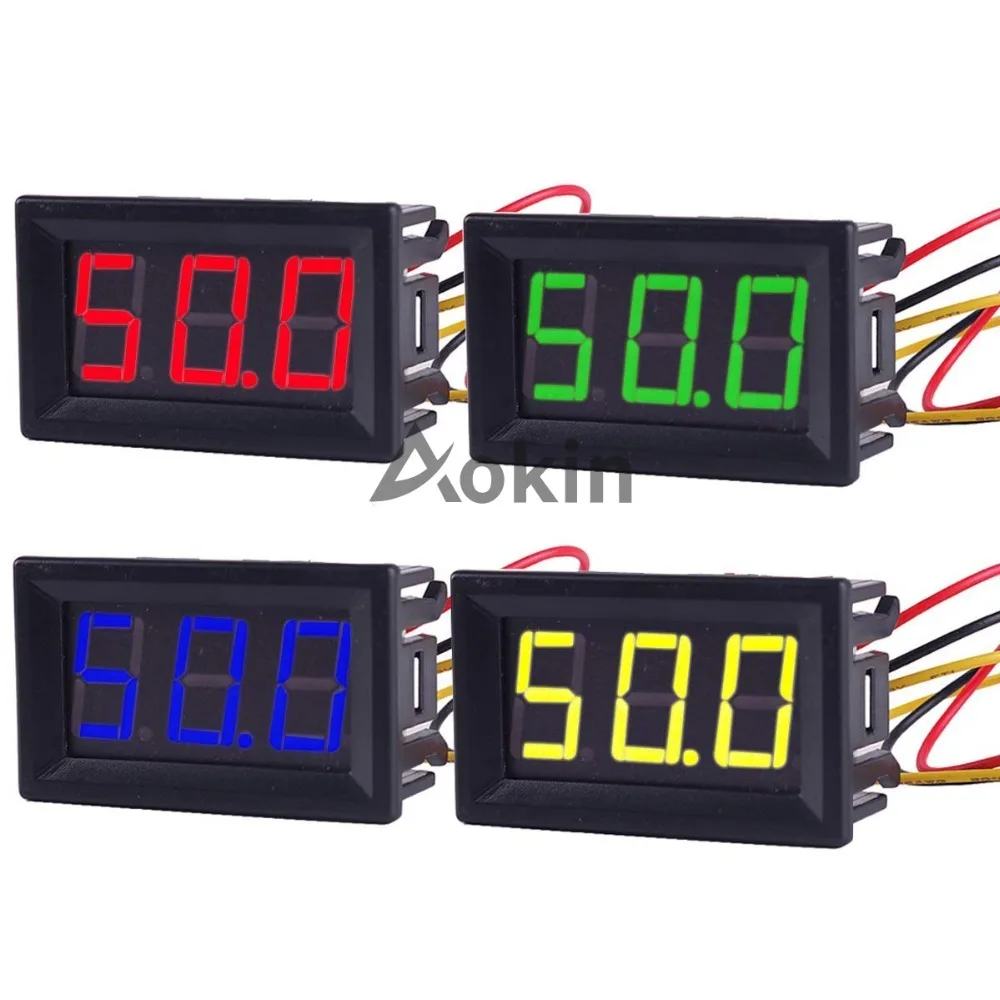

Display color: Red/Green/Blue (Optional)
Refresh rate: about 200mS/time
Power supply: No required
Current consumption: less than 20mA, generally 5-15mA
Working temperature: -10C~65C

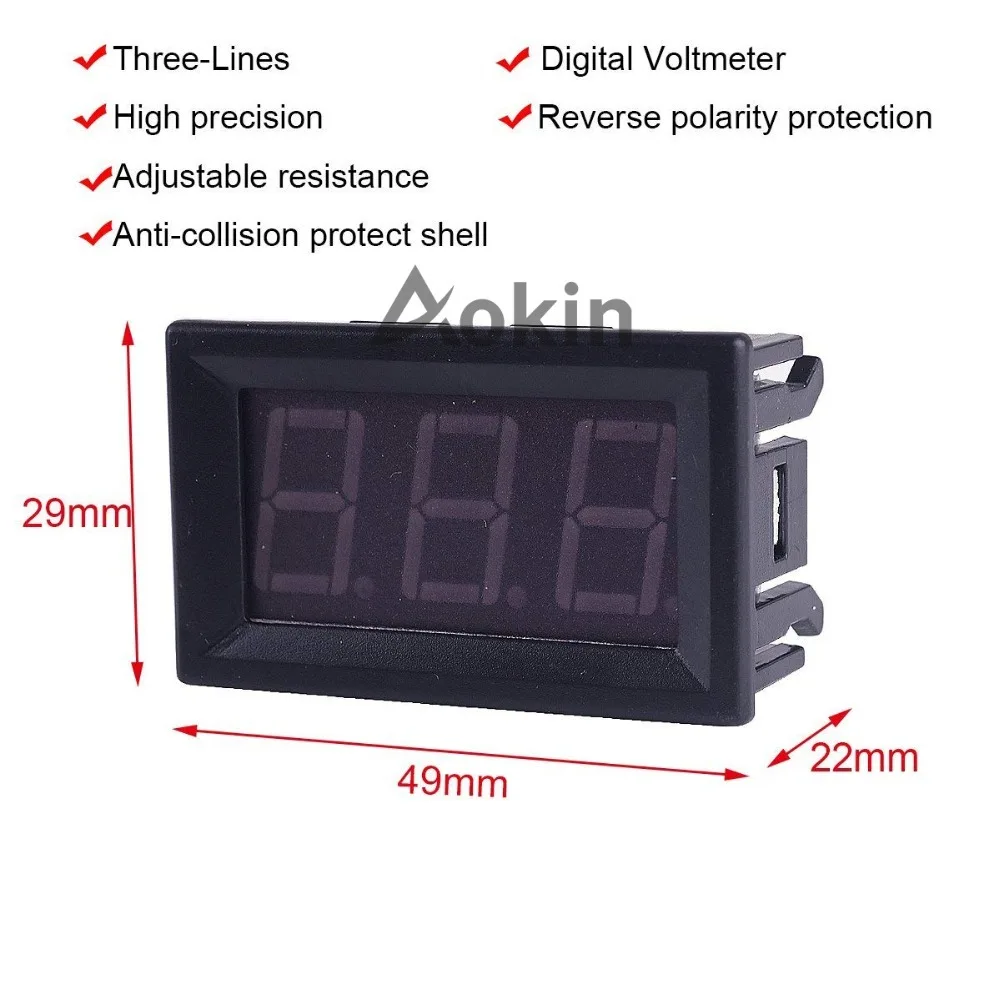

Dimensions:48 x 29 x 16mm / 1.89 x 1.14 x 0.63inch
Opening size: 46x27mm / 1.81 x 1.06inch
Lead length :20cm / 7.9inch
Precautions:
30V is the voltmeter's maximum operating limited voltage，please leave enough margin when working，to avoid voltmeter's permanent damage because of electrical spark ，power supply ripple，or other too high abrupt change of voltage.
